RJ11 female socket interface Double ports socket Full plastic lightless connector Industrial Ethernet port DGKYD5521E1266IWA1DY1

Quantité de commande min :	Négociable	Prix :	Négociable
Détails d'emballage :	Plateau en carton	Délai de livraison :	7-14 jours
Conditions de paiement :	LC, D/A, D/P, T/T, Western Union, MoneyGram	Capacité d'approvisionnement :	60000 par jour

Lieu d'origine:	Dongguan de Chine	Nom de marque:	DGKYD
Certification:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Numéro de modèle:	DGKYD5521E1266IWA1DY1

Détail Infomation
Nom du produit:	connecteur rj11	Type de connecteur:	Jack
Application:	PC, routeur, réseau hub USB RJ11, etc.	Genre:	Femelle
Transformateur:	RJ11 sans transformateur	Placage d'or sur les broches de contact:	Le FU
Température de fonctionnement:	-40 ° C ~ + 85 ° C	Température de stockage:	-40 ° C ~ + 85 ° C
Nombre de points:	6P6C
Mettre en évidence:	RJ11 female socket double ports , plastic RJ11 connector industrial , 55 series Ethernet port

Description de produit

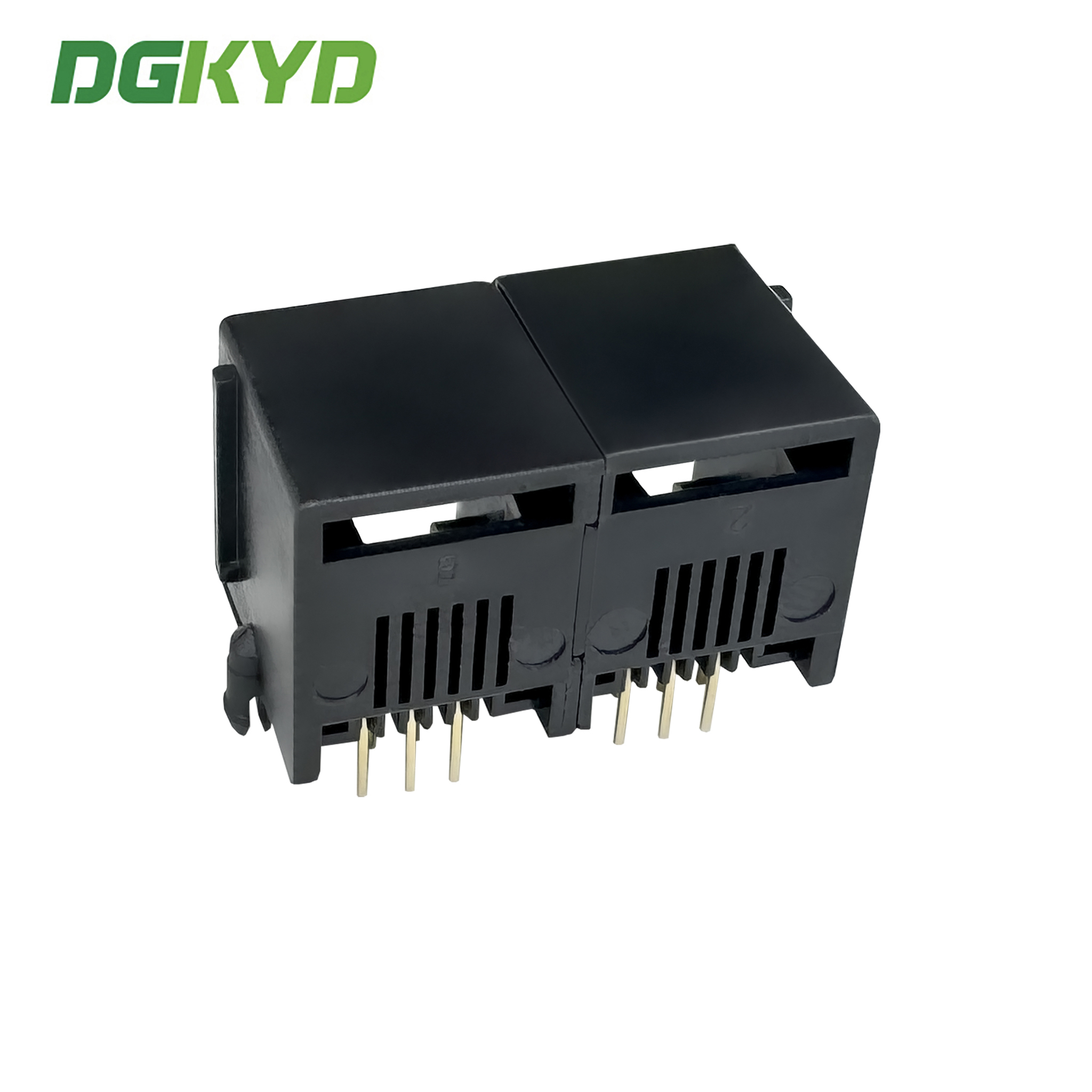

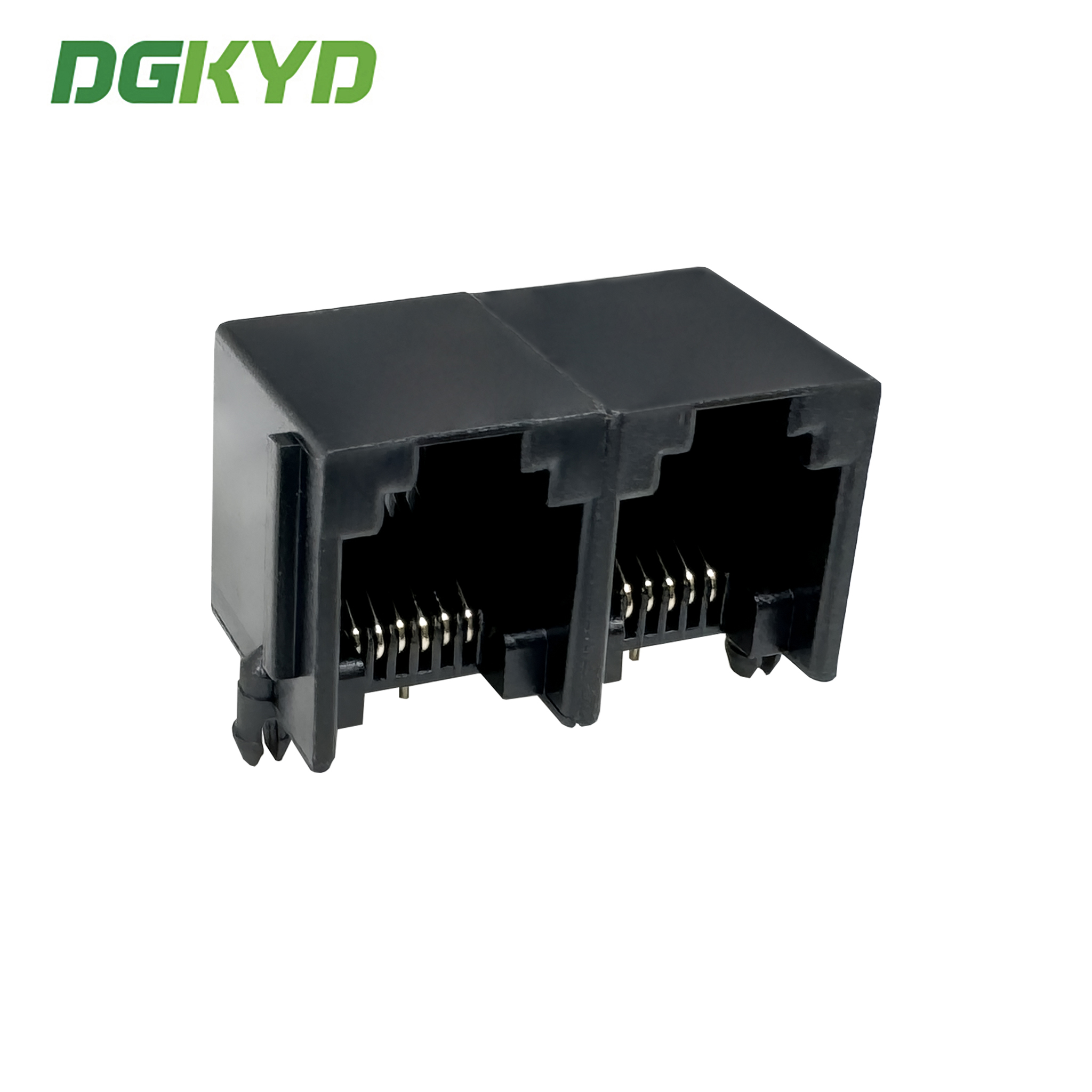

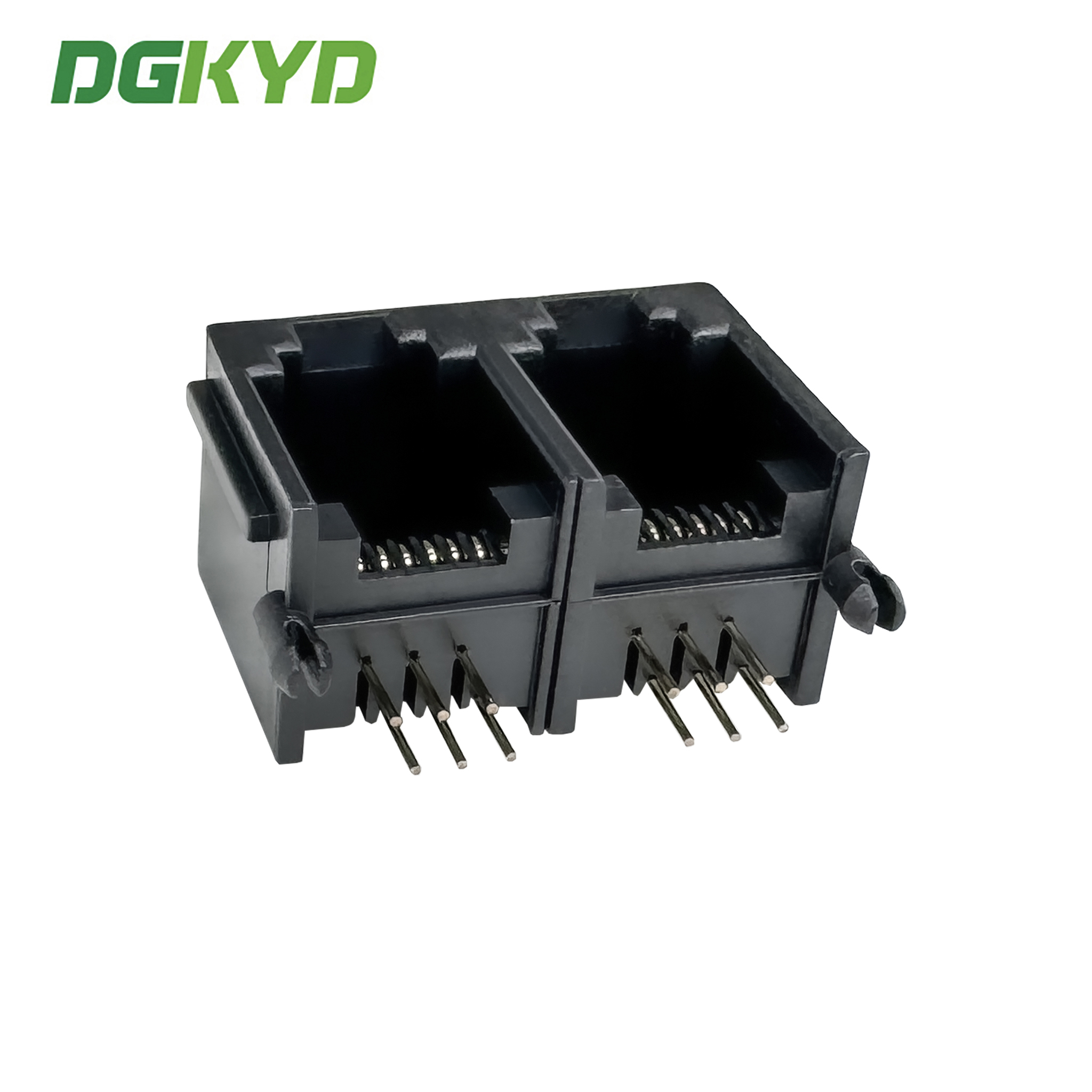

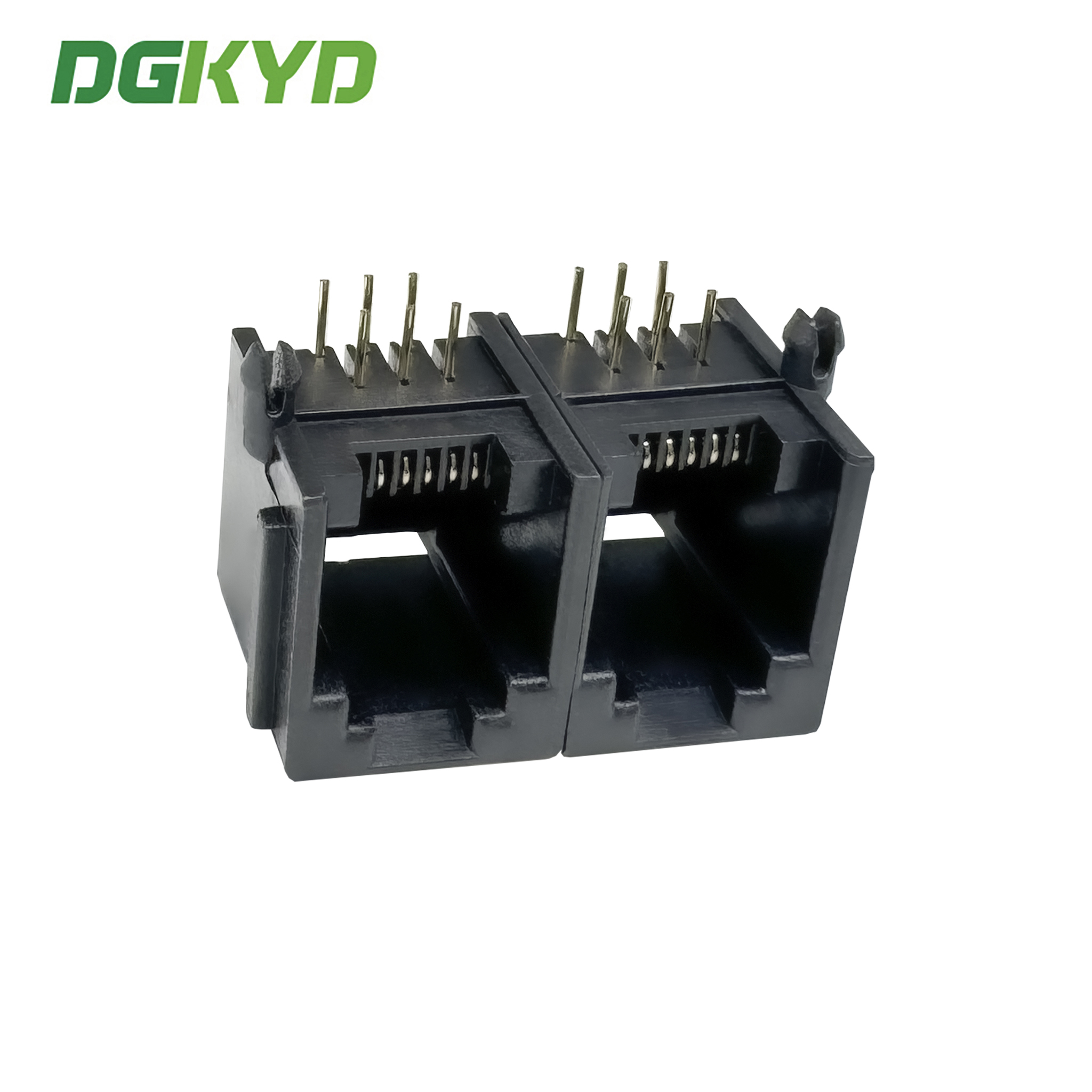

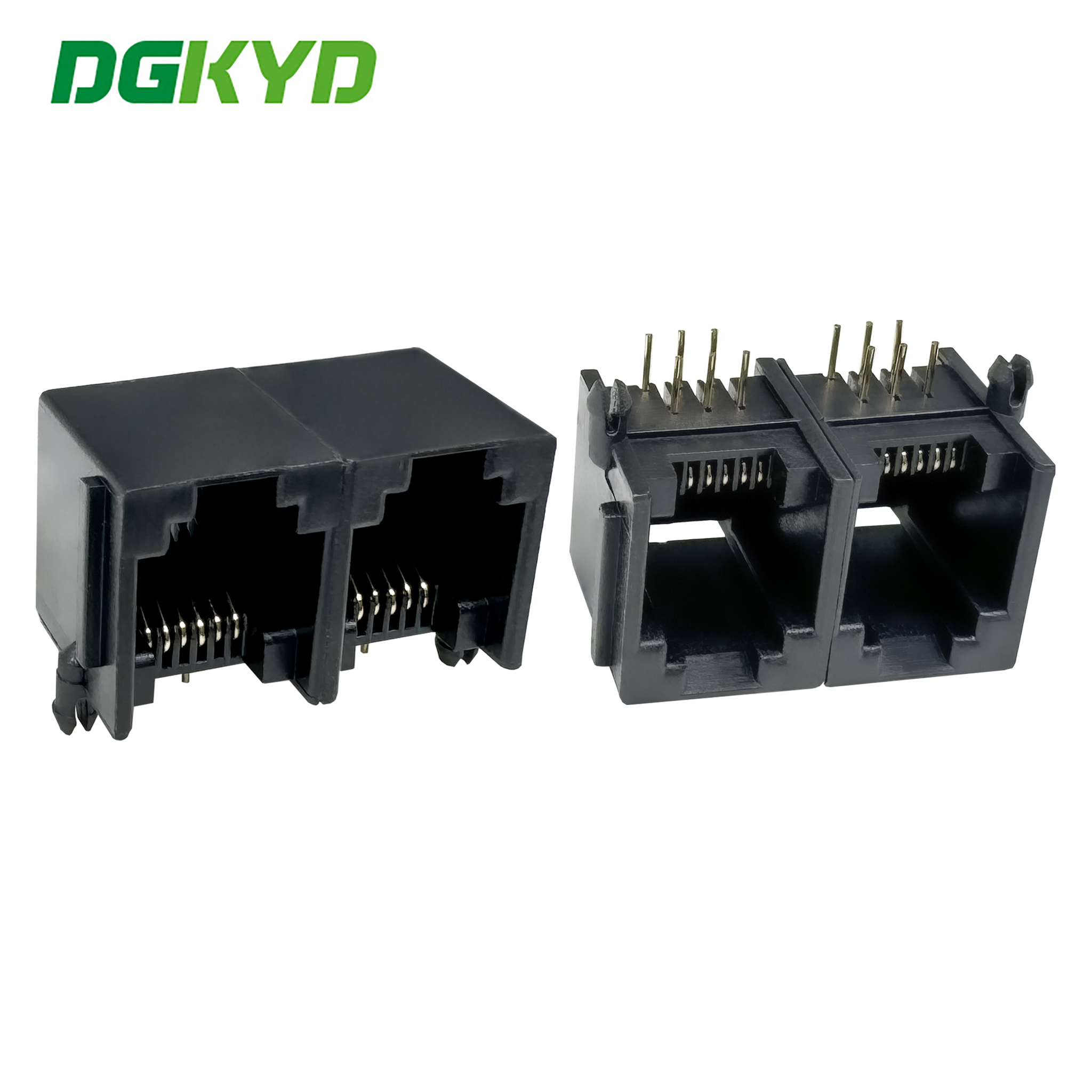

RJ11 Female Socket Interface - Double Ports Socket

Full plastic lightless connector Industrial Ethernet port DGKYD5521E1266IWA1DY1

Product Specification Document: DGKYD5521E1266IWA1DY1.pdf

Product Specifications

Part Number	DGKYD5521E1266IWA1DY1
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ11
Connector Type	Modular Jack
Latch Style	Standard
Latch	TAB-UP
Filter	Without Filter
LED Option	Without LED
LED Color	No
Panel Stops	With Panel Stops
Shielded	No
Applies To	Printed Circuit Board
Performance Speed	10/100/1000/BASE-T/TX
Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	Double Ports
Number of Positions	6
Jack Configuration	1X2
Terminals per Port	6
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	FU Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0

Technical Specifications

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business Information

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
Shield with EMI fingers or not
Coil ratio of magnetic core
Magnetics circuit diversification optional
Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Performance Parameters

Applied to Ethernet, coil ratio: 1CT: 1CT
Meet IEEE 802.3 & ANSI X 3.263 standard
Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
Wave soldering process of 265℃ Max meeting the requirements of EU ROHS standard
Withstand voltage: 2250VDC 1mA max, 60s
Impedance: 100 ohms
RJ45 interface meets FCC 68.5 standard
DC resistance: 1.5Ω
