RJ45 180 degree industrial Ethernet flat pin 6U all plastic connector DGKYD52241188IWA1DB4

Quantité de commande min :	Négociable	Prix :	Négociable
Détails d'emballage :	Plateau en carton	Délai de livraison :	7-14 jours
Conditions de paiement :	LC, D/A, D/P, T/T, Western Union, MoneyGram	Capacité d'approvisionnement :	60000 par jour

Lieu d'origine:	Dongguan de Chine	Nom de marque:	DGKYD
Certification:	RoHS/CE/FCC/CE/ISO9001/ISO14001	Numéro de modèle:	DGKYD52241188IWA1DB4

Détail Infomation
Nom du produit:	Connecteur RJ45	Type de connecteur:	Jack
Application:	PC, routeur, réseau USB RJ45 etc.	Genre:	Femelle
Transformateur:	RJ45 sans transformateur	Placage d'or sur les broches de contact:	6U
Température de fonctionnement:	-40 ° C ~ + 85 ° C	Température de stockage:	-40 ° C ~ + 85 ° C
Nombre de points:	8p8c
Mettre en évidence:	RJ45 industrial Ethernet connector , 180 degree flat pin connector , 6U all plastic Ethernet connector

Description de produit

RJ45 180 degree industrial Ethernet flat pin 6U all plastic connector DGKYD52241188IWA1DB4

Product Description

Industrial-grade RJ45 connector with 180-degree design, flat pin configuration, and all-plastic housing for reliable Ethernet connectivity.

Technical Specifications

Part Number	DGKYD52241188IWA1DB4	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	RoHS/CE/FCC/CE/ISO9001/ISO14001
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	Without LED
LED Color	No	Panel Stops	With Panel Stops
Shielded	No	Applies To	Printed Circuit Board
Performance Speed	10/100/1000/BASE-T/TX	Suitable for welding type	Reflowsolding(Alternative)
Port Configuration	single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	6U Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

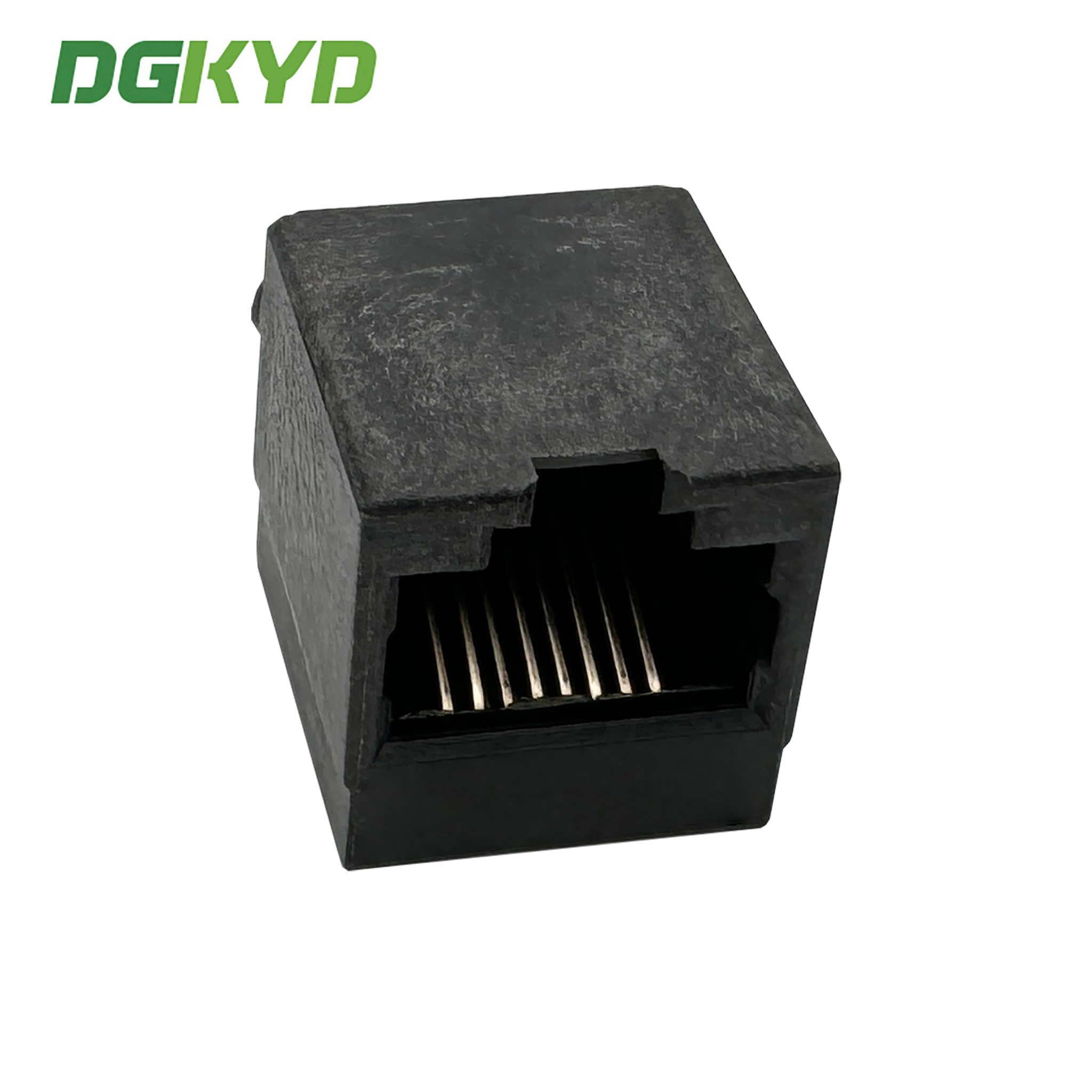

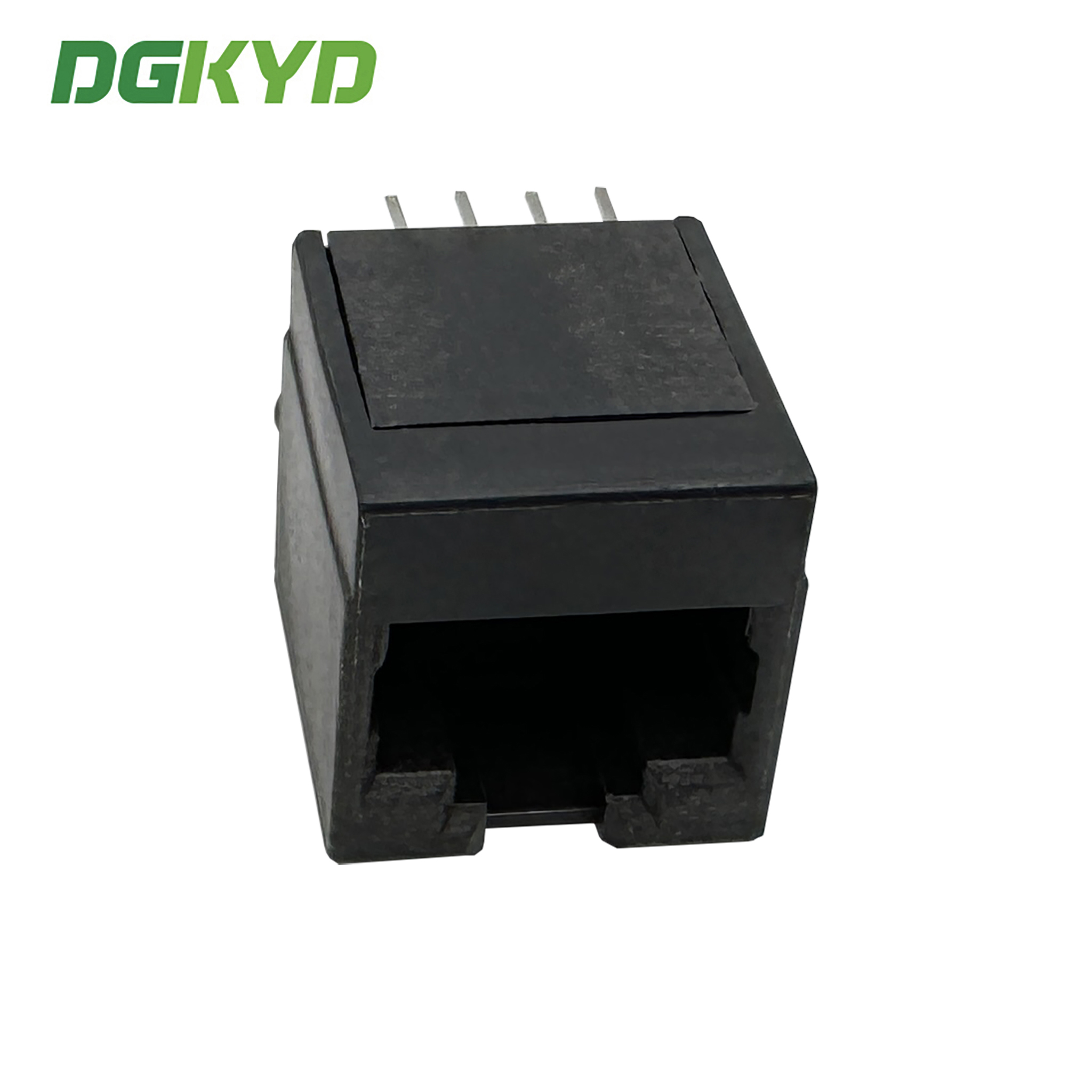

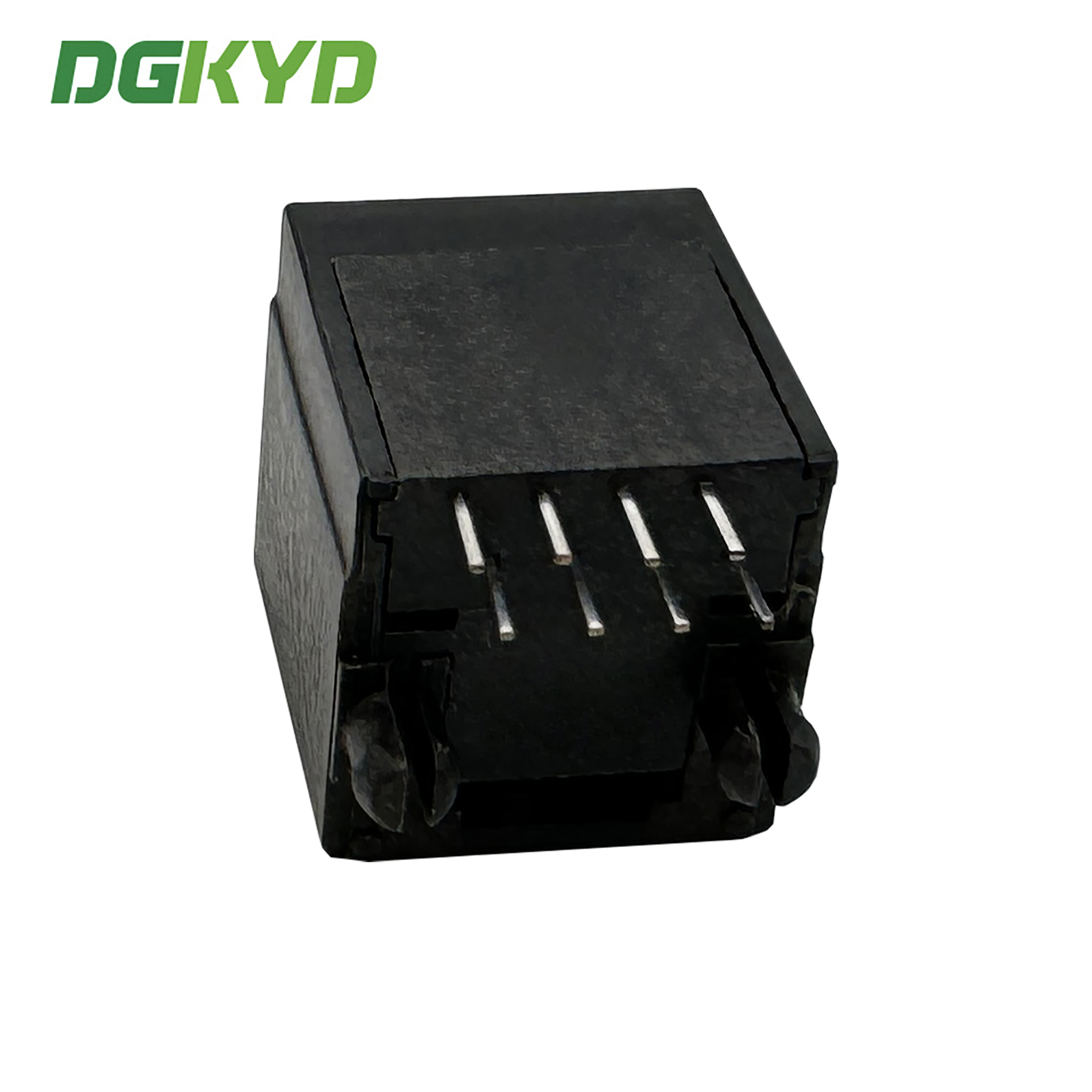

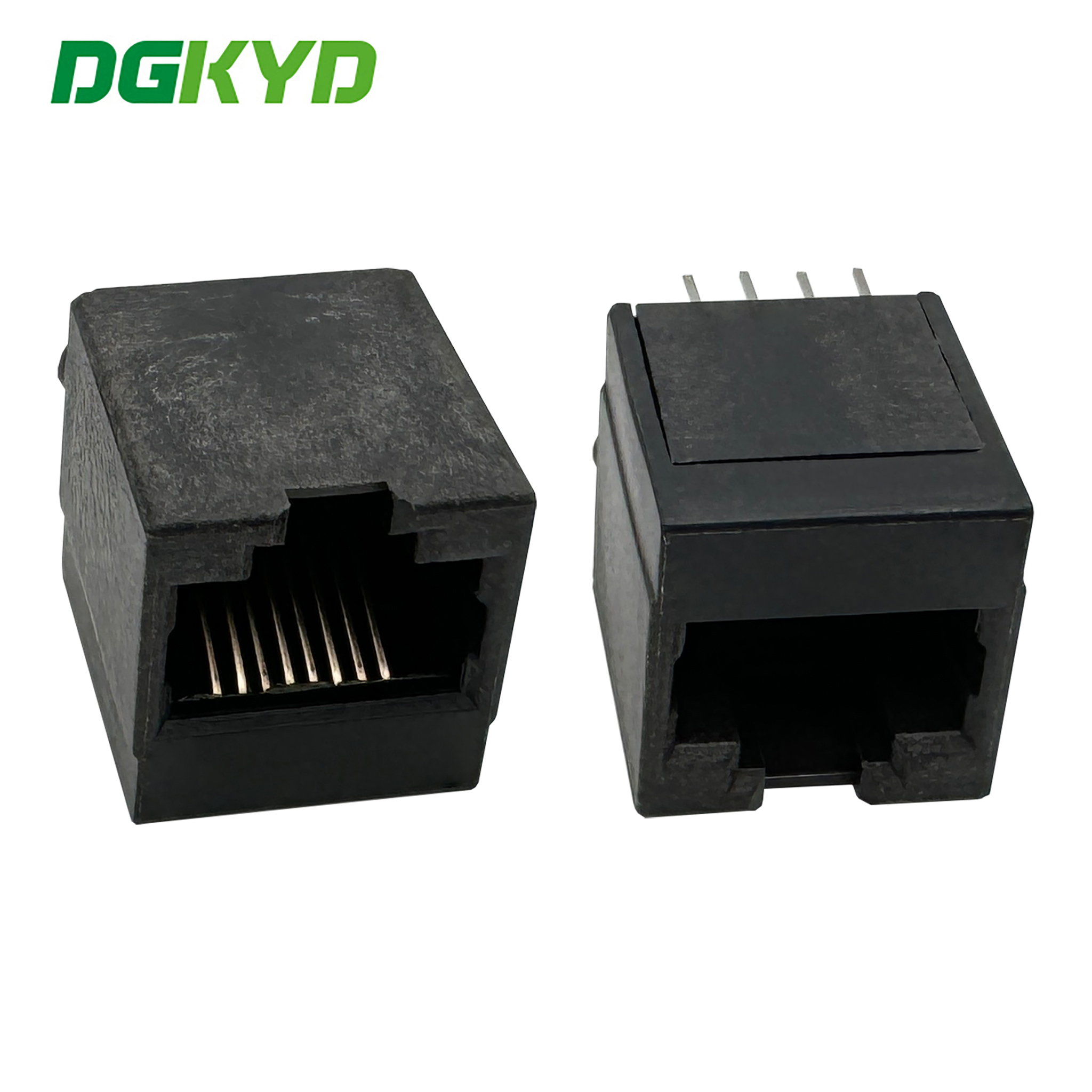

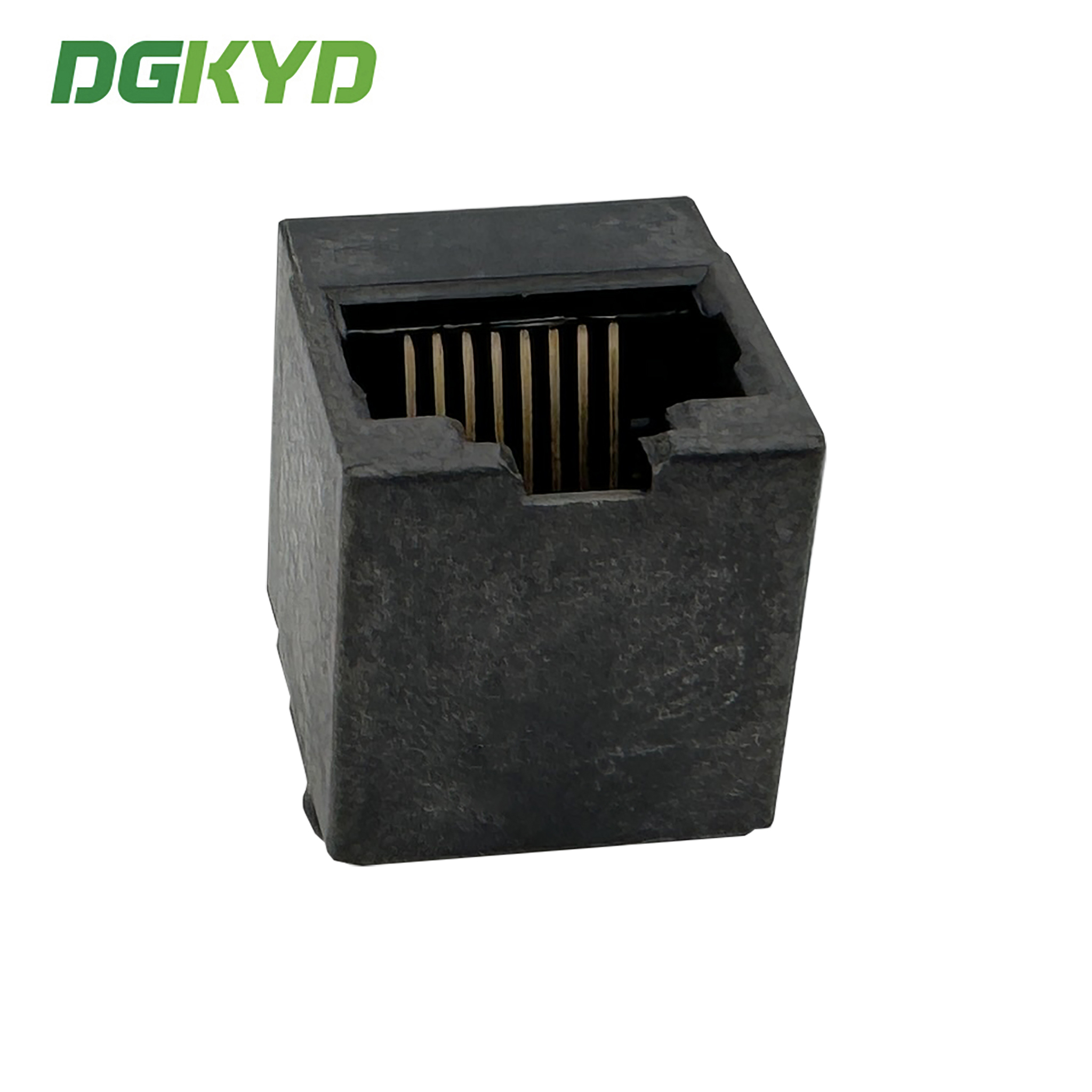

Product Images

Technical Details

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: 40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃
RJ45 full series of integrated circuit accessories

Performance Parameters

Applied to Ethernet, coil ratio: 1CT: 1CT
Meet IEEE 802.3 & ANSI X 3.263 standard
Open circuit inductance (OCL): 350uH (MIN) @ 100kHz, 0.1VRMS with 8Ma DC Bias
Wave soldering process of 265℃ Max meeting the requirements of EU ROHS standard
Withstand voltage: 2250VDC 1mA max, 60s
Impedance: 100 ohms
RJ45 interface meets FCC 68.5 standard
DC resistance: 1.5Ω

Manufacturing Information

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Customization options available for LED indicators, shielding, coil ratio, magnetics circuit, contact plating, and housing material
Products meet industry standards for electrical properties, mechanical properties, and environmental protection

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
