RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1

Contactez

RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1

Quantité de commande min :	1 morceau	Prix :	Please contact us to get the latest price.
Détails d'emballage :	Plateau en carton	Délai de livraison :	10 jours
Conditions de paiement :	T / T, D / P, D / A, L / C, Western Union, Moneygram	Capacité d'approvisionnement :	100k PC / jour

Lieu d'origine:	Dongguan de Chine	Nom de marque:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numéro de modèle:	Dgkyd111q594ab2a12db1

Détail Infomation
Type d'interface modulaire et plug:	RJ45 avec transformateur	Style de connecteur:	RJ45 Jack féminin
Blindé:	Blindé en métal	Vitesse:	cat6
Indicateur d'état:	DIRIGÉ	Orientation de verrouillage:	Entrée supérieure
Nombre de positions / contacts:	8p10c (RJ45, Ethernet)	OEM / ODM:	Oui
Placage d'or sur les broches de contact:	30U	Température de stockage:	-40 ° C ~ + 85 ° C
Température de fonctionnement:	-40 ° C ~ + 85 ° C
Mettre en évidence:	RJ45 connector 10G with transformer , shielded RJ45 connector with light , 10G RJ45 connector with warranty

Description de produit

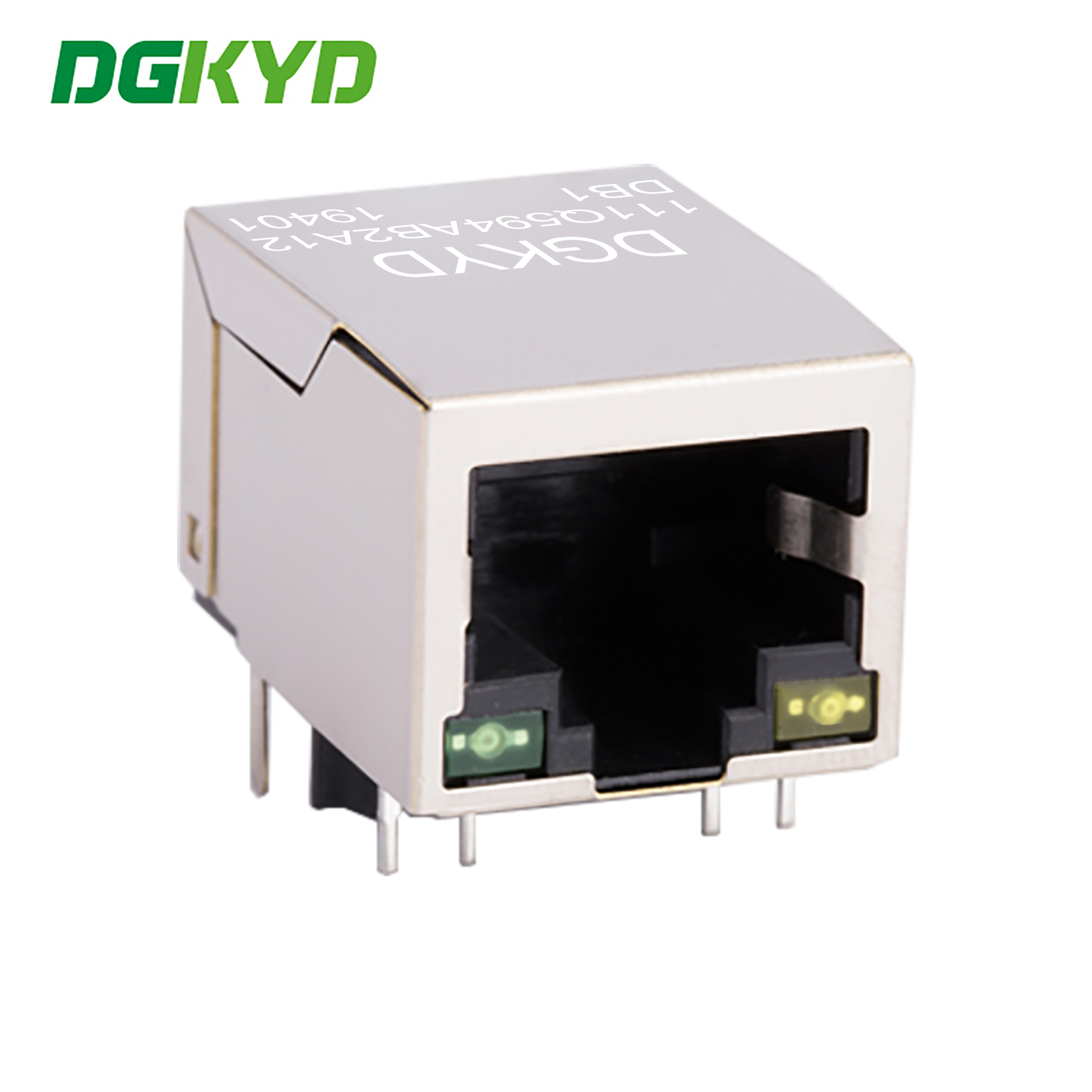

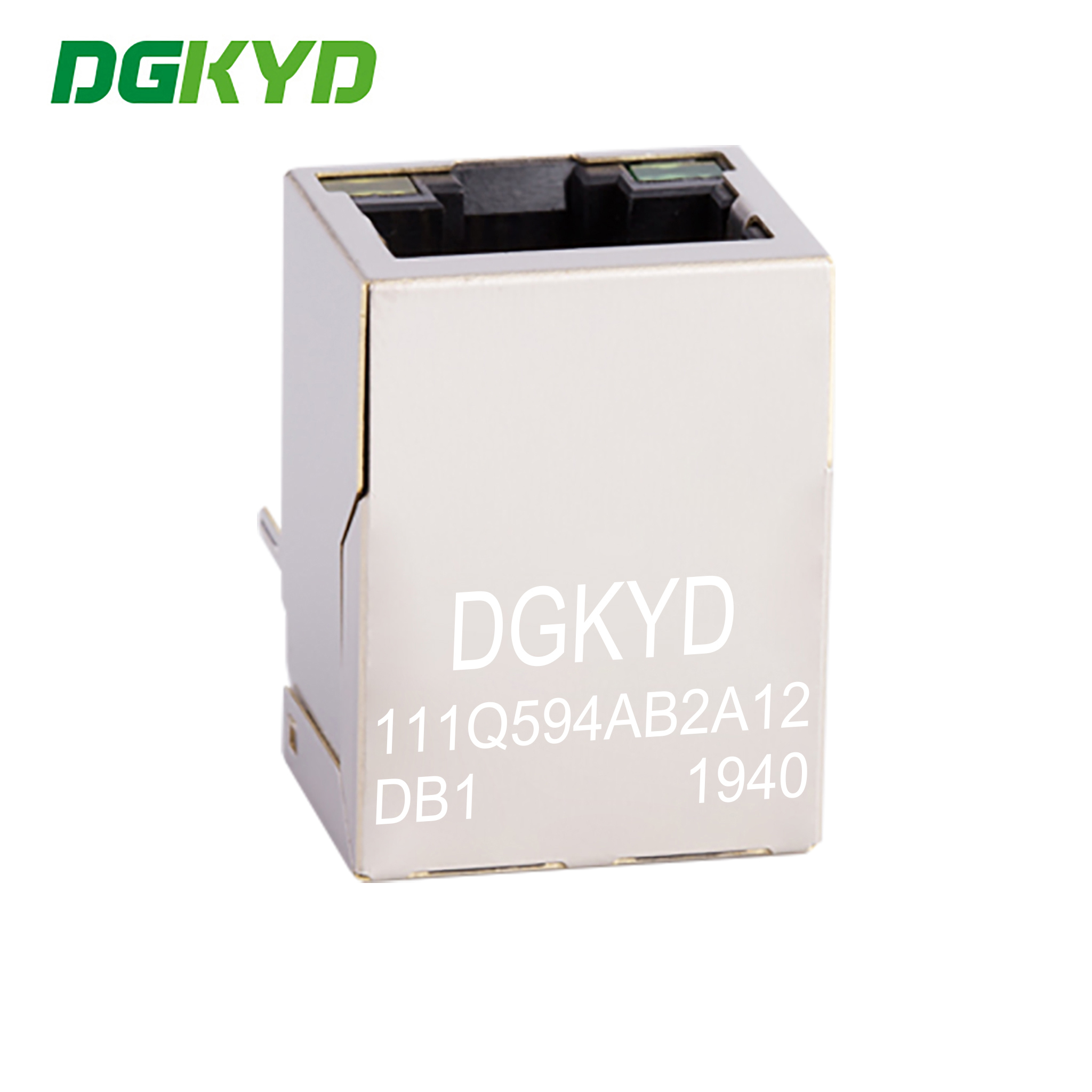

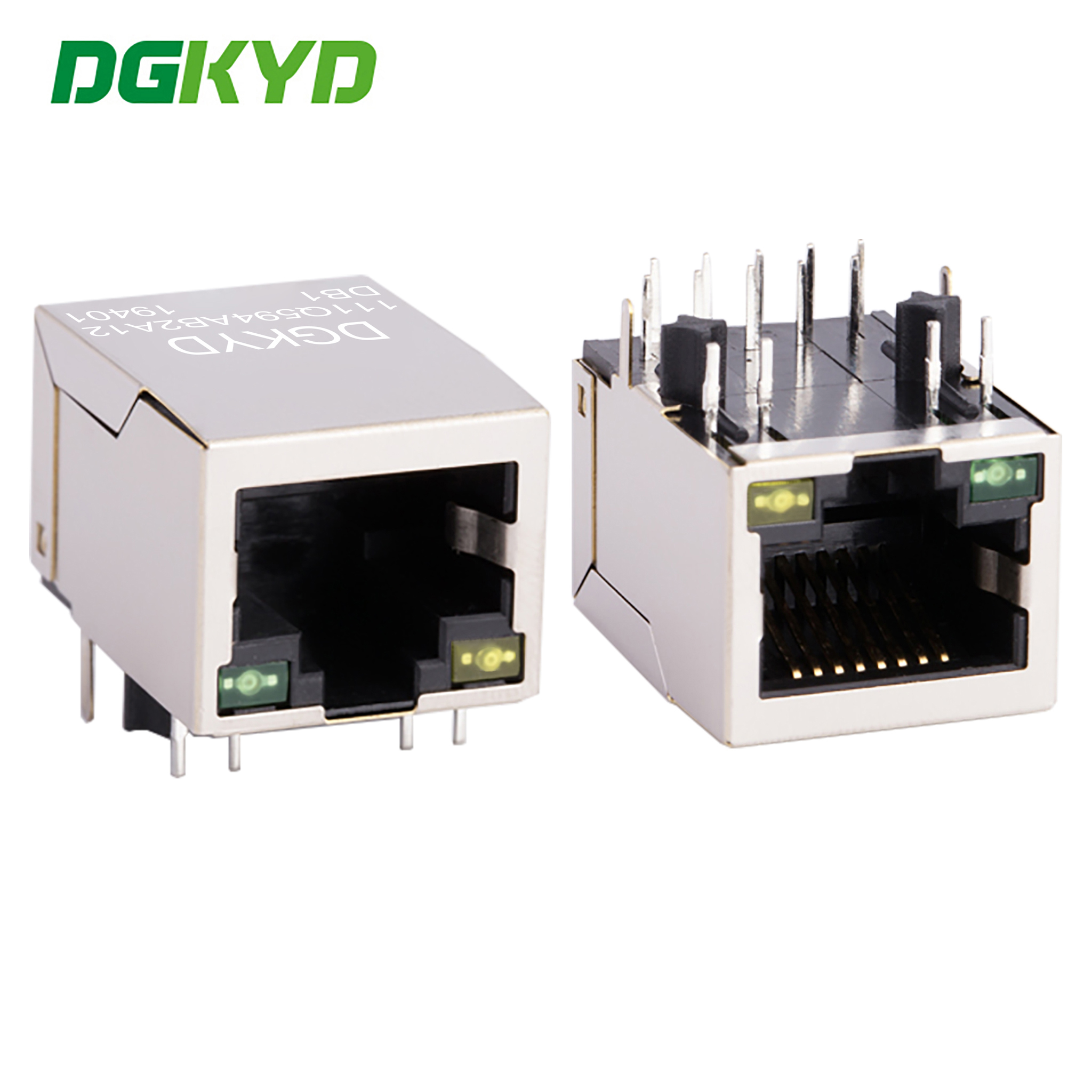

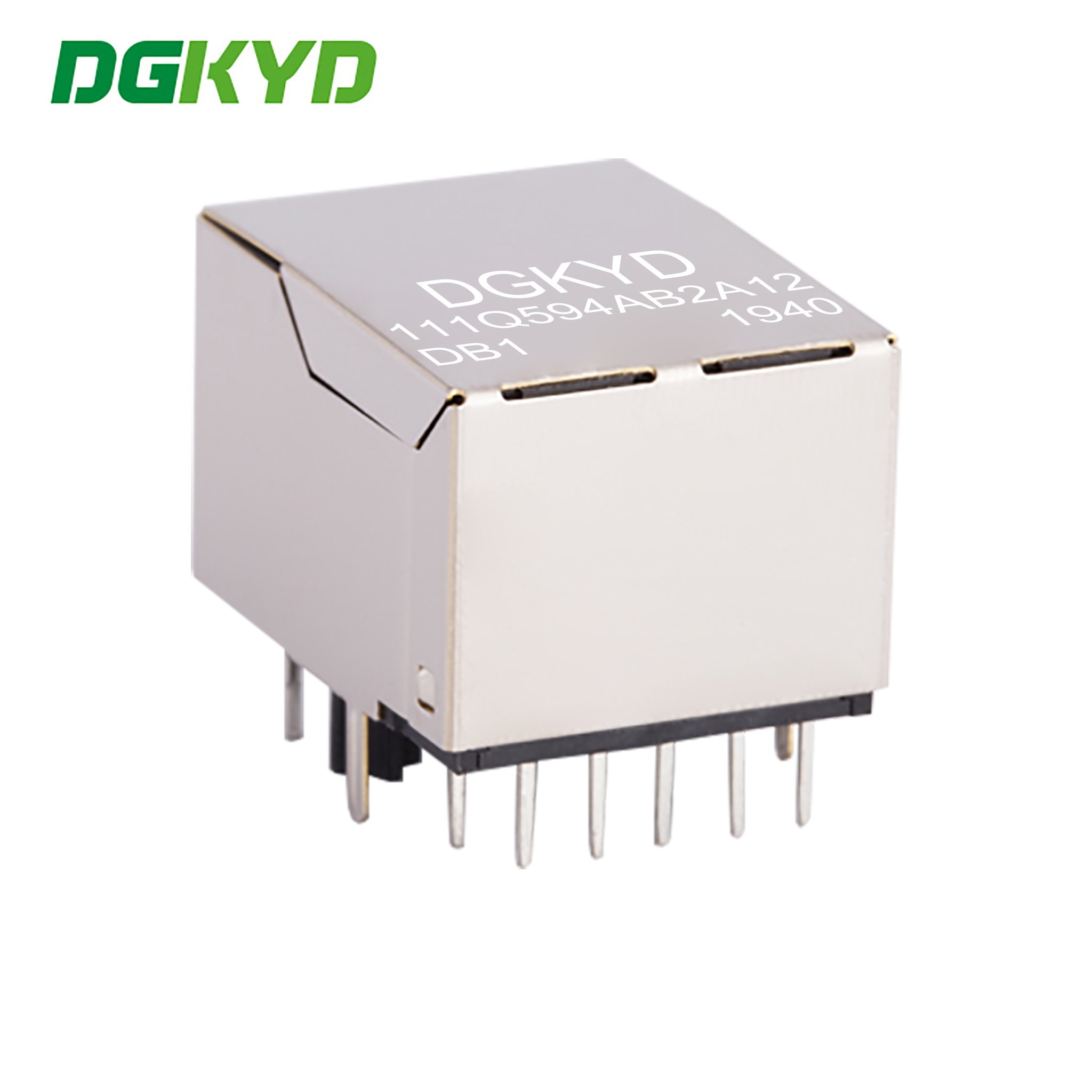

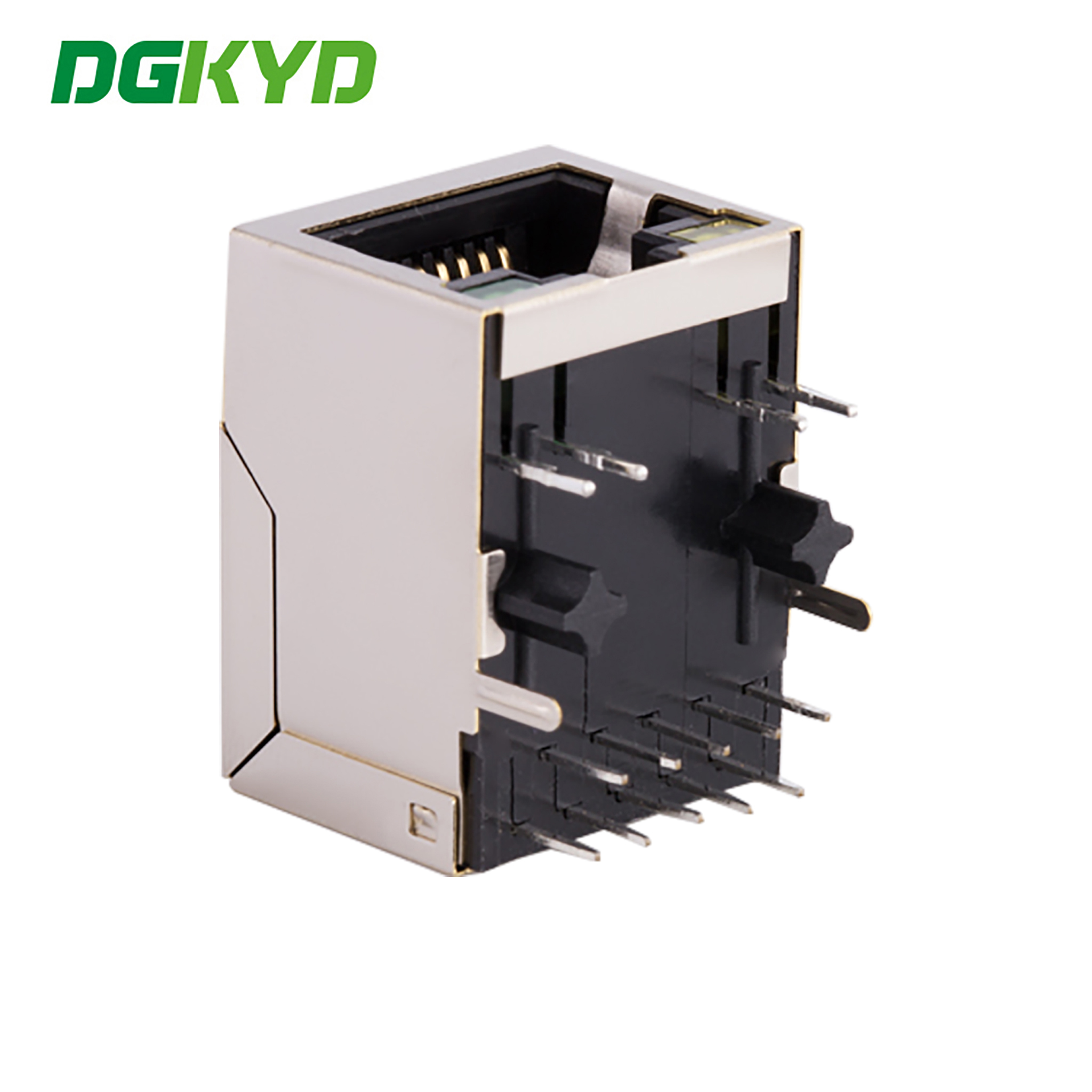

RJ45 Connector with Built-in 10G Integrated Transformer with Light and Shielding DGKYD111Q594AB2A12DB1

RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1

Product Attributes

Attribute	Value
Modular Jack & Plug Interface Type	RJ45 with transformer
Connector Style	RJ45 female Jack
Shielded	Metal Shielded
Speed	cat6
Status Indicator	LED
Latch Orientation	Top Entry
Number of Positions/Contacts	8p10c (RJ45, Ethernet)
OEM/ODM	Yes
Gold plating on contact pins	30U
Storage temperature	-40°C~+85°C
Operating temperature	-40°C~+85°C

Product Specification

Drawing: RJ45 connector with built-in 10G integrated transformer with light and shielding DGKYD111Q594AB2A12DB1

Product Specification Document: DGKYD111Q594AB2A12DB1(10G) .pdf

Parameters

Part Number	DGKYD111Q594AB2A12DB1	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	SIngle Ports	Number of Positions	10
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 30u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PA9T Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Product Features

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ - 85℃
Storage temperature: -40℃ - 85℃
Lead free soldering: wave soldering height up to 265℃

Manufacturing Advantages

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks.
Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED) Shield with EMI fingers or not coil ratio of magnetic core magnetics circuit diversification optional contact gold plating (FU, 3U, 6U, 15u, 30U, 50U) plastic housing material (PBT,PA46,PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Frequently Asked Questions

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
