Integrated Tab Up RJ45 USB Network Connector with usb 2.0 for PCMCIA Net Card KRJ-USB02YGZNL

Quantité de commande min :	1 morceau	Prix :	Please contact us to get the latest price.
Détails d'emballage :	Plateau en carton	Délai de livraison :	10 jours
Conditions de paiement :	T / T, D / P, D / A, L / C, Western Union, Moneygram	Capacité d'approvisionnement :	100k PC / jour

Lieu d'origine:	Dongguan de Chine	Nom de marque:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numéro de modèle:	Krj-usb02ygznl

Détail Infomation
Matériel de logement:	Noir UL-94V-0 de PBT	Type de connecteur:	RJ45 + USB 2,0
Angle de bâti de carte PCB:	Angle droit	Style de bâti:	TREMPER
Vitesse:	Catégorie 6	Port:	Ports doubles
Bouclier:	placage en nickel en cuivre en phosphore	OEM / ODM:	Oui
Nombre de positions / contacts:	8P8c (RJ45, Ethernet)	Placage d'or sur les broches de contact:	G/Fu
Température de stockage:	-40 ° C ~ + 85 ° C	Température de fonctionnement:	-40 ° C ~ + 85 ° C
Mettre en évidence:	RJ45 USB network connector , PCMCIA net card adapter , USB 2.0 network connector

Description de produit

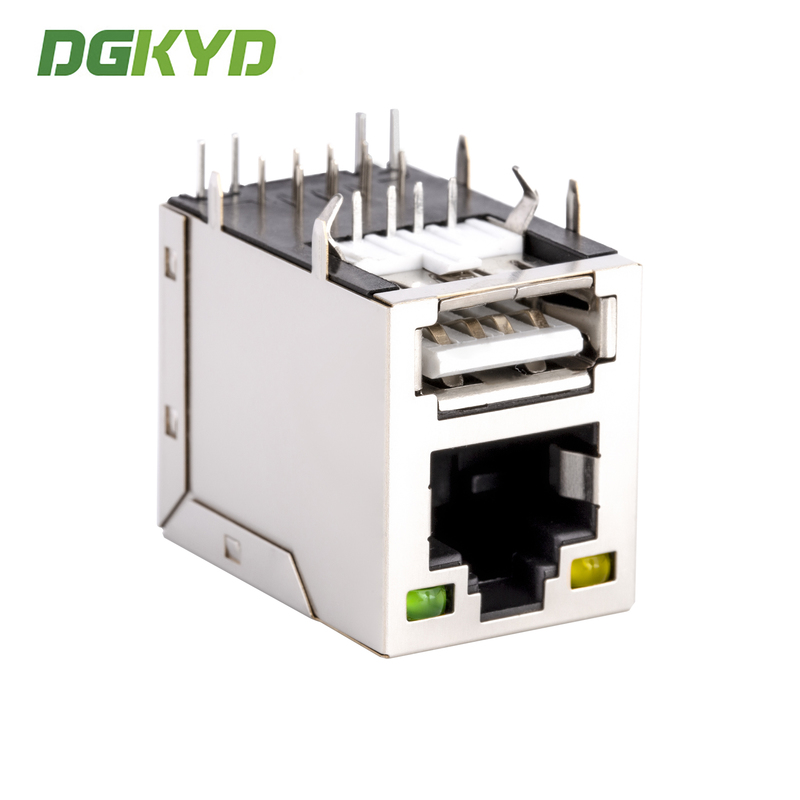

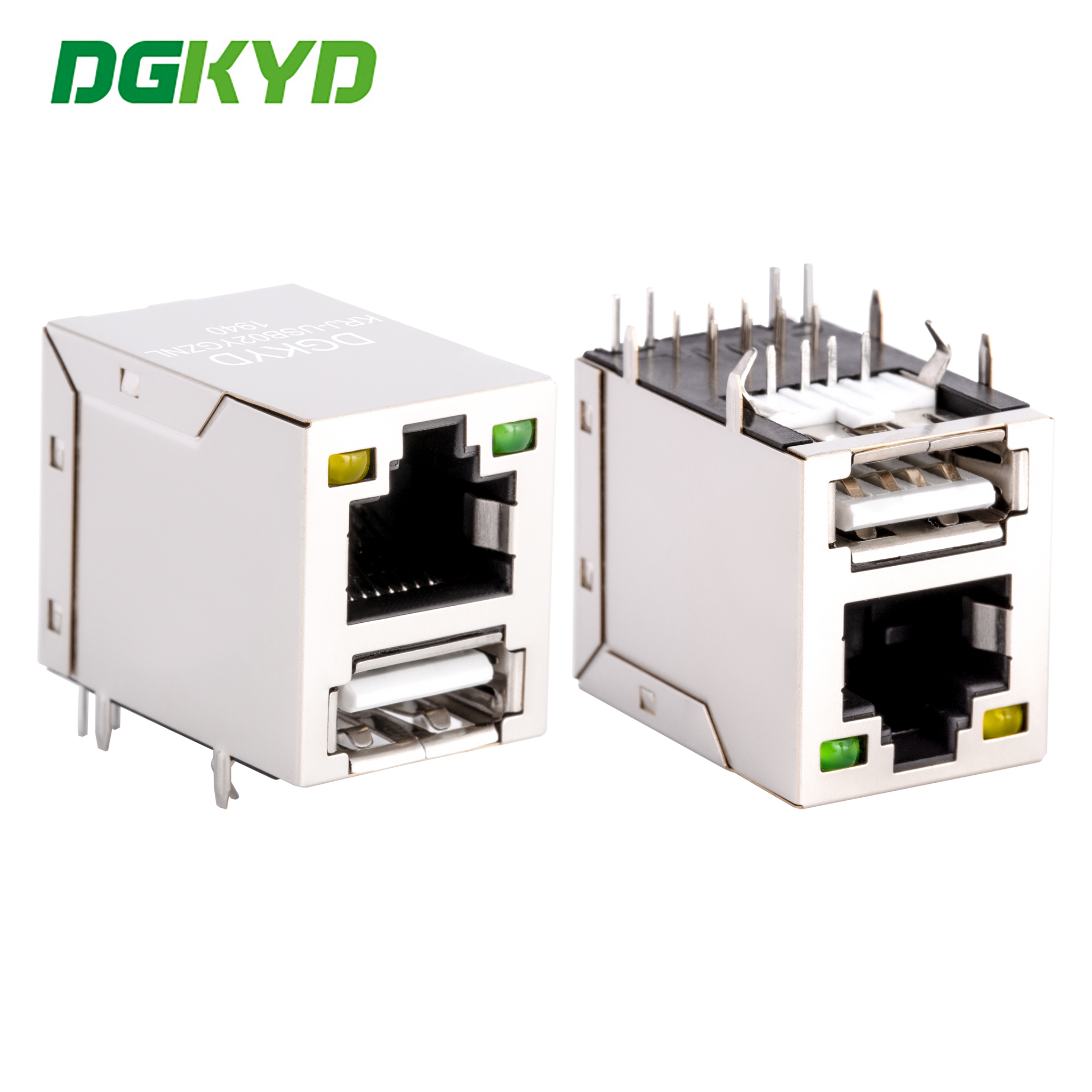

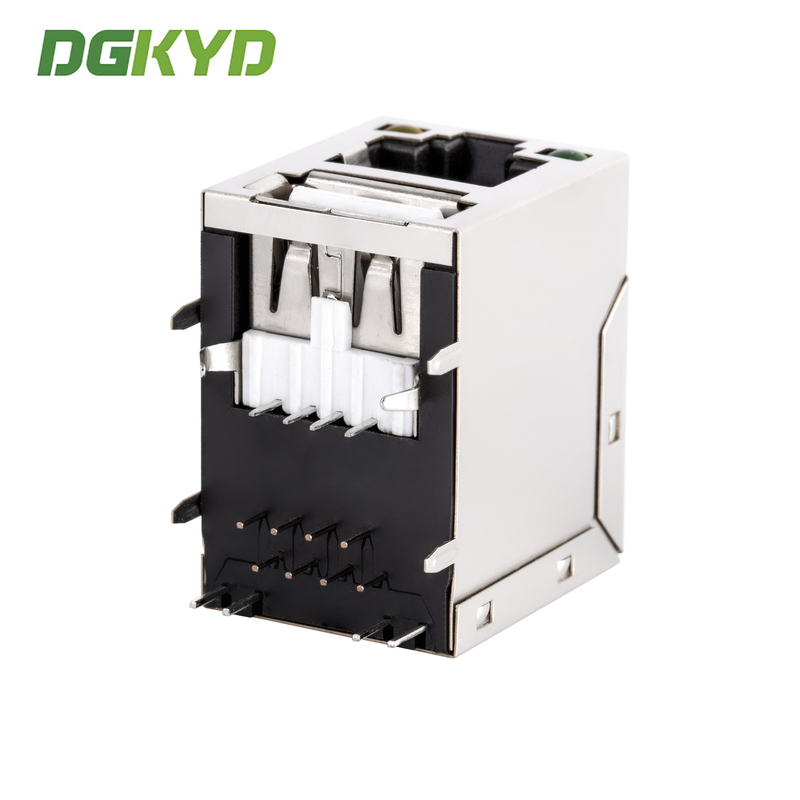

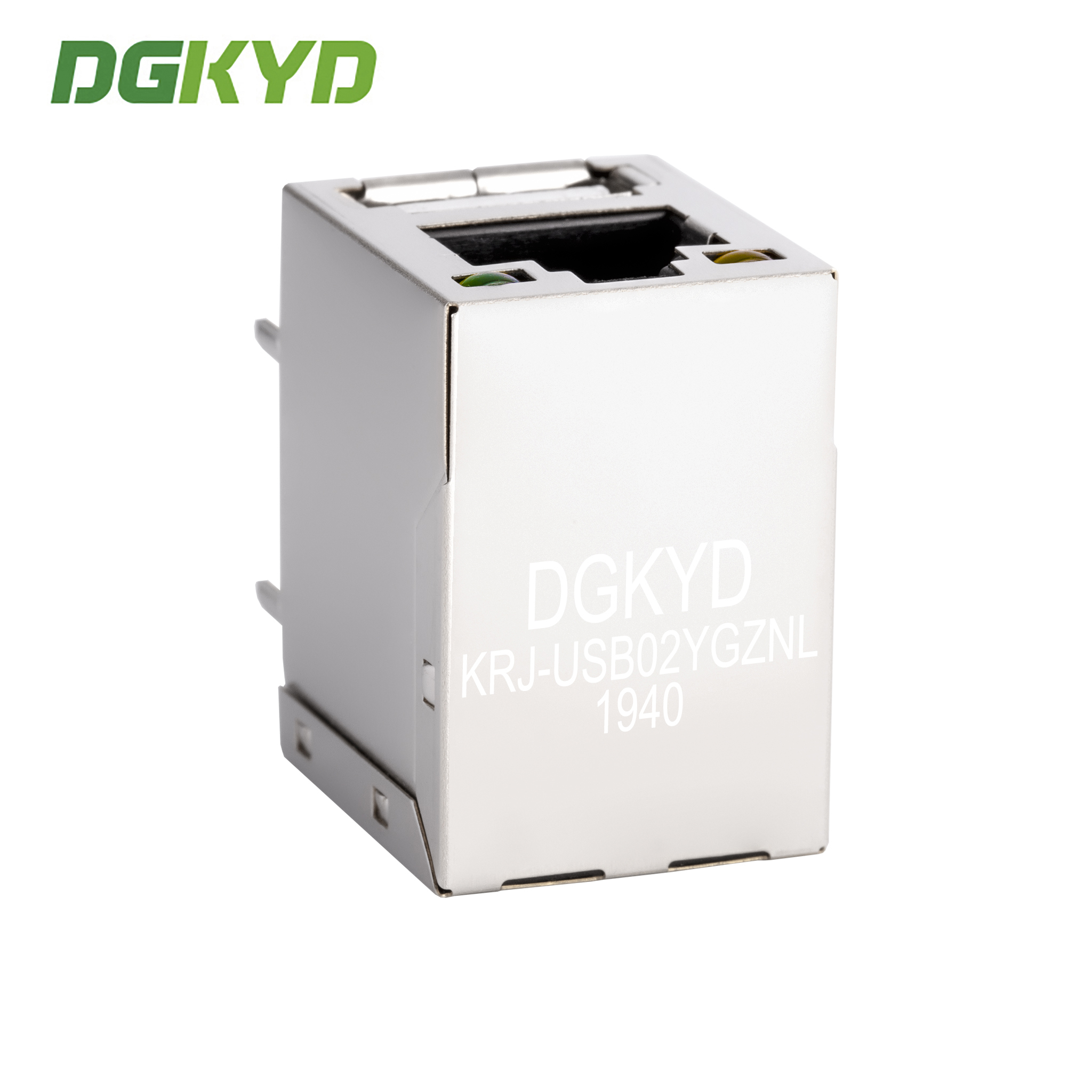

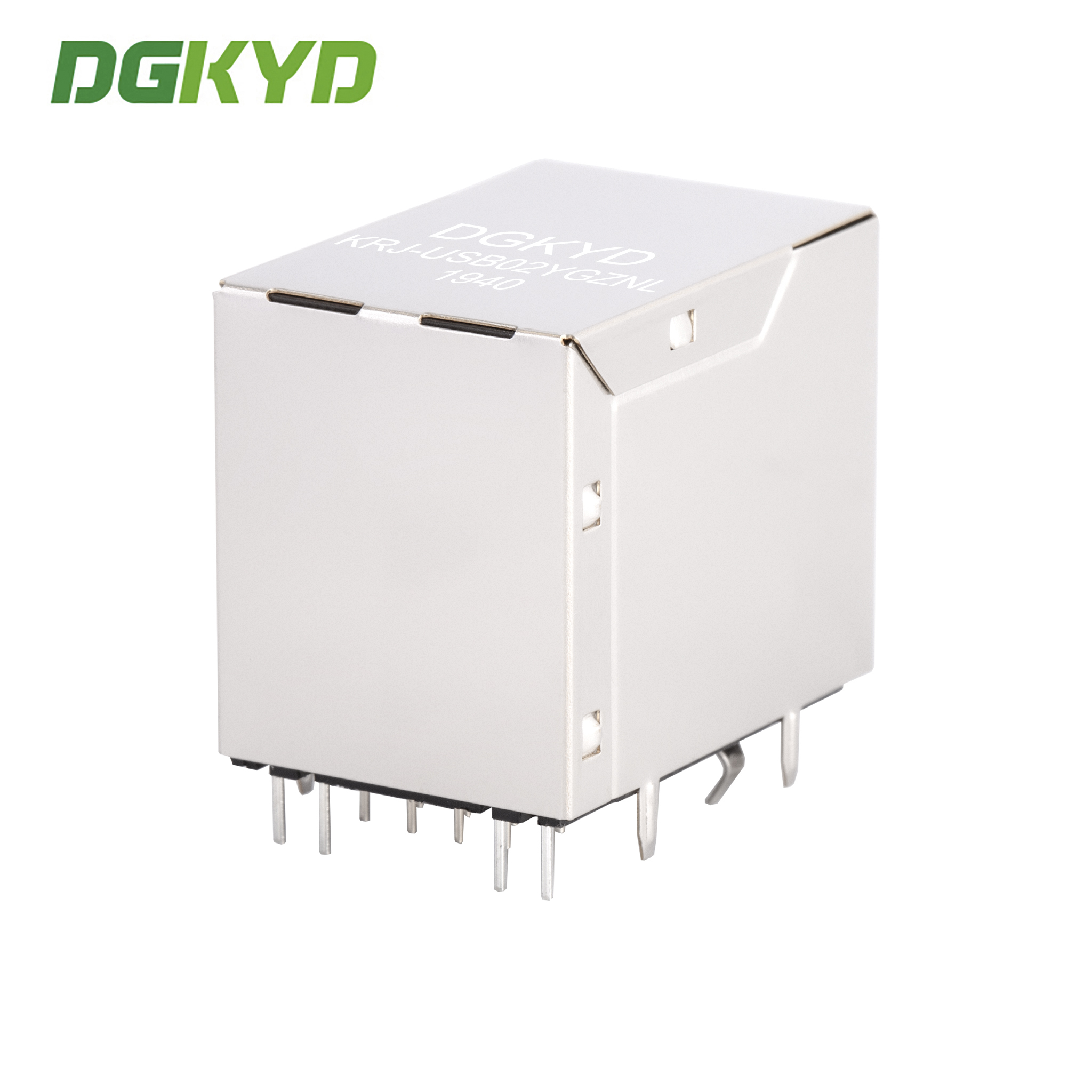

Integrated Tab Up RJ45 USB Network Connector with USB 2.0 for PCMCIA Net Card KRJ-USB02YGZNL

Product Description

Integrated Tab Up RJ45 USB Network Connector with USB 2.0 for PCMCIA Net Card KRJ-USB02YGZNL

Drawing

Parameters

Part Number	KRJ-USB02YGZNL	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-UP
Filter	Without Filter	LED Option	With LED
LED Color	Yellow/Green	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printed Circuit Board
Port Configuration	Single Ports	Number of Positions	8
Jack Configuration	1X1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold Fu	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

Our Strengths

Interface type: crystal head application: 10/100/1000BASE-T Ethernet
Type: RJ45 built in magnetics
Working frequency: high frequency characteristic: filtering, anti-interference
Working temperature: -40℃ to 85℃
Storage temperature: -40℃ to 85℃
Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

Business mode: Manufacturer
Delivery time: on time delivery, around two weeks
Specs for choices:
- LED indicator light (green, yellow, red, orange, blue, bi-color LED)
- Shield with EMI fingers or not
- Coil ratio of magnetic core
- Magnetics circuit diversification optional
- Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
- Plastic housing material (PBT, PA46, PA9T, LCP)
The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

Q: Are you trading company or manufacture?

A: We are manufacture. Welcome to our factory.

Q: What about your lead time?

A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

Q: Can you provide samples? Are they free?

A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

Q: Can I put my own logo on it?

A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
