DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer

Quantité de commande min :	1	Prix :	$1.20-2

Lieu d'origine:	Guangdong, Chine	Numéro de modèle:	Le numéro de série de la DGKYD411Q117DF5

Détail Infomation
Taper:	RJ45	Genre:	Femelle
Couleur LED:	Orange vert et jaune	Placage:	Placage d'or 6U
Matériel de logement:	Polyester de PBT	Transformateur:	Avec Transformer & Poe
Style de verrou:	Standard	Blindé en métal:	Avec blindage en métal
Vitesse:	Gigabit	Vitesse de représentation:	1000 Base-T
Configuration du port:	célibataire	Nombre de positions:	12
Jack Configuration:	1 x 1	Terminaux par port:	8
Matériau du bouclier:	Alliage de cuivre plaqué d'avance avec du nickel
Mettre en évidence:	RJ45 connector gold plated , Gigabit RJ45 single port , RJ45 connector with transformer

Description de produit

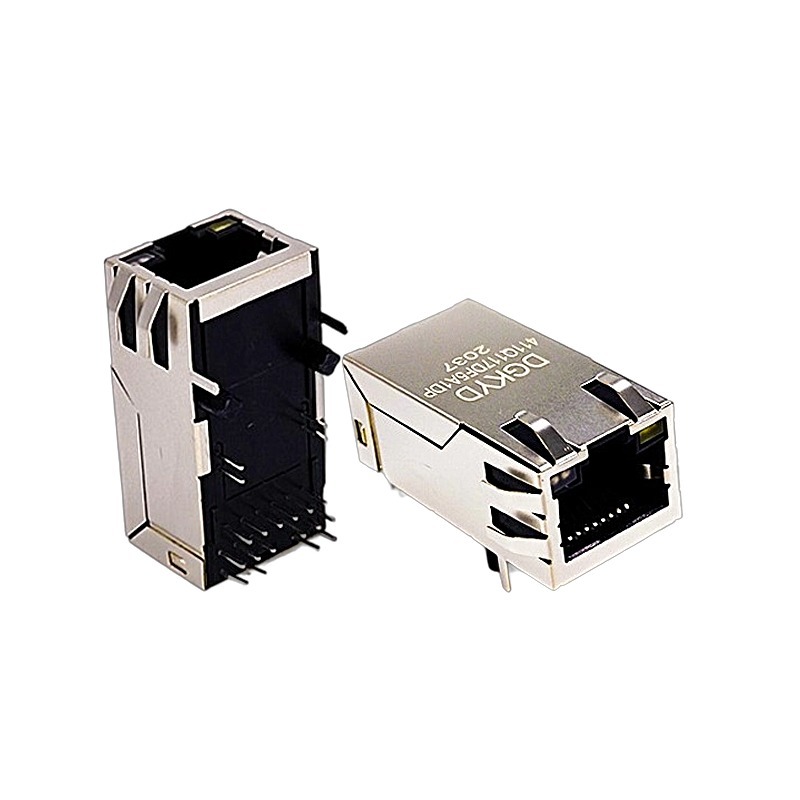

High-Frequency Gold-Plated 6U Network Port Ethernet RJ45 Connector Single-Port 1x1 Gigabit Integrated Transformer LED Spring Tab

Product Specifications

Part Number	DGKYD411Q117DF5A1DP
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China
Certification	ISO16949/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular
Connector Style	Jack
Jack Type	RJ45
Connector Type	Modular Jack
Latch Style	Standard
Latch	Up
Filter	With Filter & PoE
LED Option	With LED
LED Color	Green Orange & Yellow
Panel Stops	With Panel Stops
Shielded	Yes
Applies To	Printed Circuit Board
Performance Speed	1000 BASE-T
Grounding Options	Panel Ground and PCB Ground
Port Configuration	Single
Number of Positions	12
Jack Configuration	1 x 1
Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel
PCB Mounting Orientation	Side Entry (Right Angle)

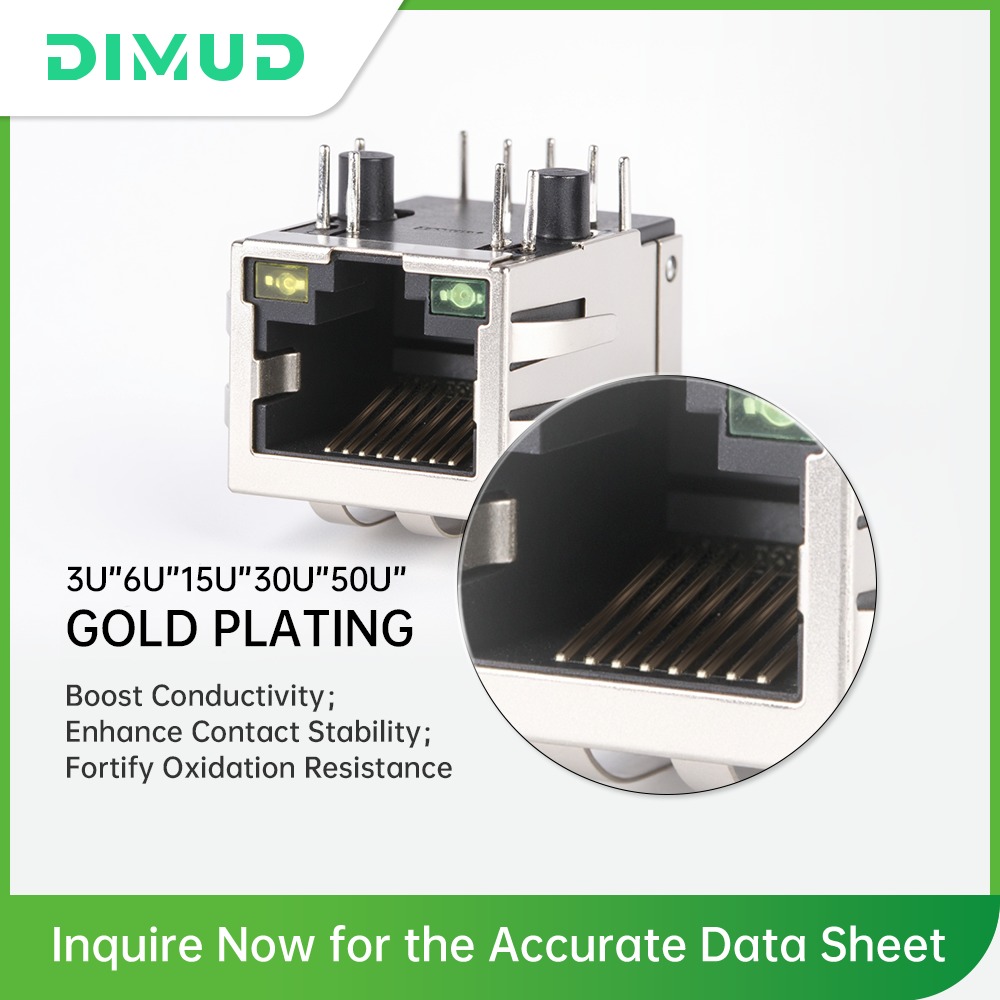

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u
Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel
PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit
Board Lock	With/Without Board Lock
Housing Material	PBT Polyester
Housing Color	Black
Housing Material Temperature	Standard
UL Flammability Rating	UL 94V-0
