1-Port RJ45 Connector 10P PBT with Filter and Shielding

Quantité de commande min :	1	Prix :	$0.60-1.80

Lieu d'origine:	Guangdong, Chine	Nom de marque:	DGKYD
Numéro de modèle:	DGKYD111Q066HWA1D

Détail Infomation
Type de connecteur:	RJ45	Blindage:	Oui
Nombre de ports:	1	Contact terminé:	6U / 15U / 30U
Orientation:	côté	Nombre de lignes:	1
Broches:	10p	Matériau de contact:	Bronze phosphore
Matériel de logement:	Polyester de PBT	Filtre:	Avec le filtre
Vitesse de représentation:	10/100/1000 BASE-T	Configuration du port:	célibataire
Terminaux par port:	8	Orientation de support de carte PCB:	Entrée latérale (angle droit)
Placage d'accouplement de contact:	L'or est de 6 u/15 u/30 u/50 u
Mettre en évidence:	1-port RJ45 connector with filter , shielded RJ45 single port connector , PBT RJ45 connector with shielding

Description de produit

High-Speed 1x1 Single-Port Gigabit Network Connector

10PIN PBT Material Integrated Filtering Shielding Non-Lit for RJ45

Product Specifications

Part Number	DGKYD111Q066HWA1D	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO16949/CE/UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Down
Filter	With Filter	LED Option	Without LED
Shielded	Yes	Applies To	Printed Circuit Board
Performance Speed	10/100/1000 BASE-T	Grounding Options	Panel Ground and PCB Ground

Technical Details

Port Configuration	Single	Number of Positions	10
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)

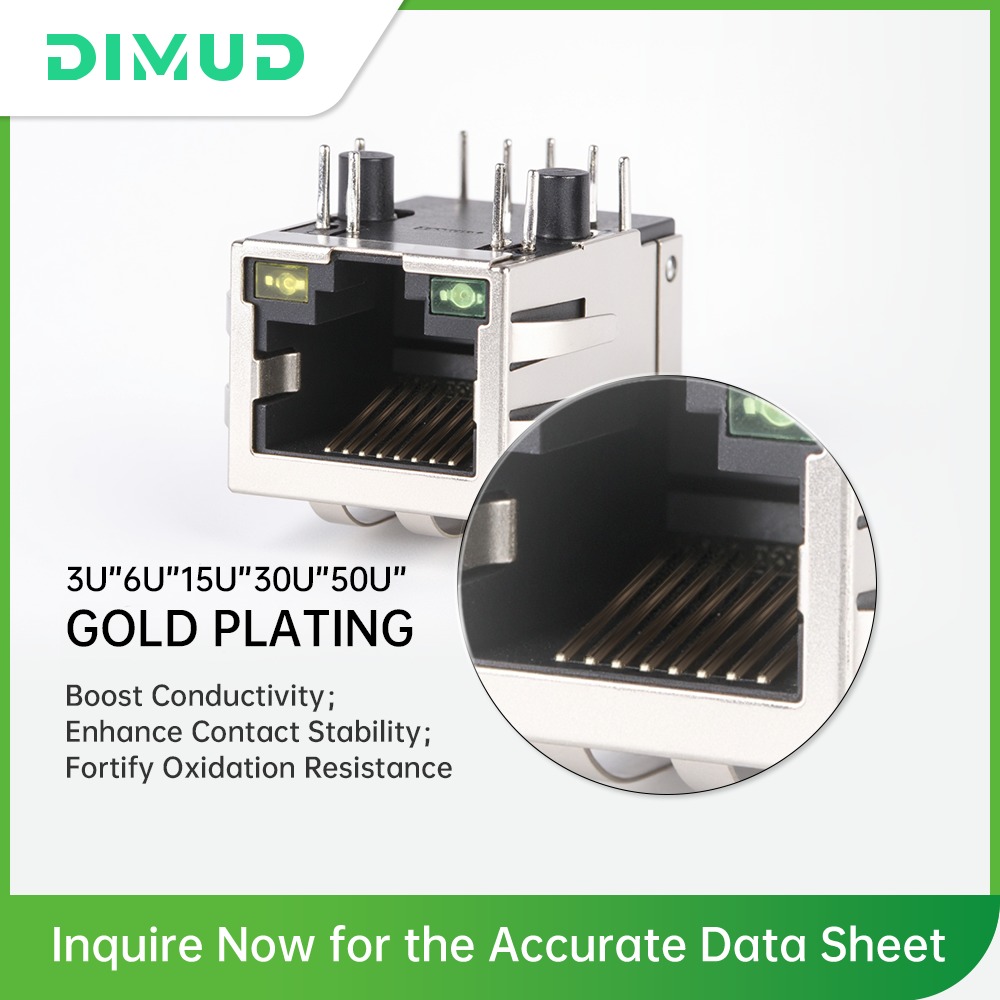

Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
UL Flammability Rating	UL 94V-0

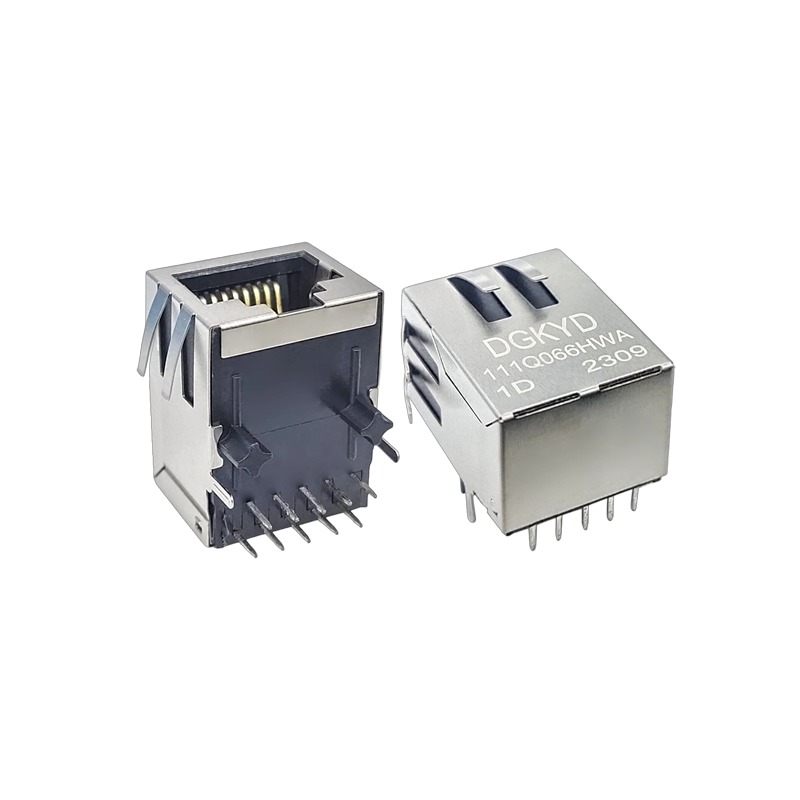

Product Images

Key Features

High-Speed Performance: Supports 10/100/1000 BASE-T networks
Robust Construction: PBT polyester housing with copper alloy shielding
Integrated Filtering: Built-in EMI/RFI protection
Reliable Contacts: Gold-plated phosphor bronze contacts
Secure Mounting: Through-hole PCB mounting with board lock options
Safety Certified: UL 94V-0 flammability rating
