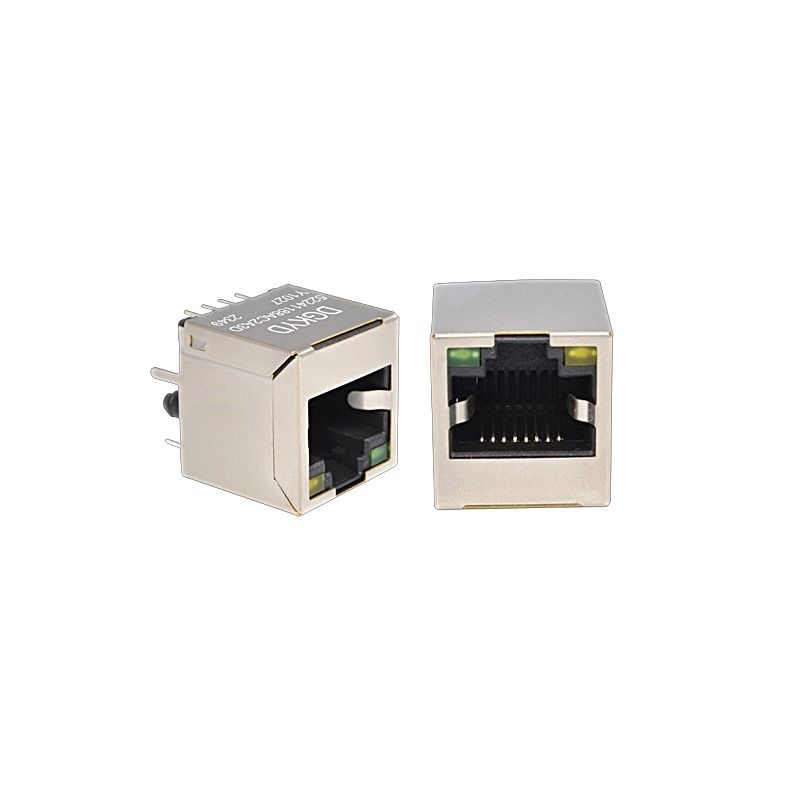

DGKYD RJ45 Connector 8P8C with LED Green/Yellow -40℃ to 85℃

Quantité de commande min :	1	Prix :	$0.20-0.30

Lieu d'origine:	Guangdong, Chine	Nom de marque:	DGKYD
Numéro de modèle:	DGKYD52241188AC2A3DY1027, Connecteurs Jack

Détail Infomation
Taper:	RJ45, en-têtes et récipients de PCB	Couleur LED:	Vert/jaune
Placage:	Placage d'or g / fu	Matériel de logement:	Polyester de type PA46
Style de verrou:	Standard	Filtre:	Sans filtre
Option LED:	Avec DEL	Blindé:	Oui
Vitesse de représentation:	10/100/1000 / 10G BASE-T	Nombre de positions:	8
Matériau du bouclier:	Alliage de cuivre plaqué d'avance avec du nickel	Placage de contact:	Or G / Fu
Matériau de base de contact:	Bronze phosphore	Méthode de résiliation:	À travers des trous-ajustement
Température de fonctionnement:	-40 ℃ \| ℃ 85
Mettre en évidence:	RJ45 connector with LED , 8P8C RJ45 connector -40℃ to 85℃ , single port RJ45 connector green/yellow

Description de produit

High-Quality 180° Straight Insertion 8P8C Modular RJ45 Network Connector with LED Strip

This shielded RJ45 connector features a modular design with LED indicators, panel stops, and high-performance capabilities for 10/100/1000/10G BASE-T networks. The filter-free design ensures reliable data transmission in industrial applications.

Product Specifications

Part Number	DGKYD52241188AC2A3DY1027
Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong, China
Certifications	IATF16949/ISO9001/ISO14001/CE/UL/FCC/Reach/RoHS
Product Type	Modular Connector
Connector Style	Jack
Jack Type	RJ45
Latch Style	Standard TAB-UP
LED Options	Green/Yellow LED indicators
Shielded	Yes (Copper Alloy with Nickel plating)
Performance Speed	10/100/1000/10G BASE-T
Mounting Orientation	Side Entry (Right Angle)
Contact Plating	Gold G/Fu (mating area), Tin-Lead over Nickel (solder tail)
Housing Material	PA46 Polyester (UL 94V-0 rated)

Key Features

180° straight insertion design for easy installation
Modular construction with panel stops for secure mounting
Dual-color LED indicators (Green/Yellow) for status monitoring
Shielded design with copper alloy for EMI protection
High-performance contacts with gold plating for reliable connections
Through-hole PCB mounting with press-fit termination
UL 94V-0 rated flame-resistant housing
Compatible with 10G BASE-T networks

Product Images

Applications

This industrial-grade RJ45 connector is ideal for network equipment, telecommunications devices, industrial automation systems, and any application requiring reliable high-speed data transmission in demanding environments.
