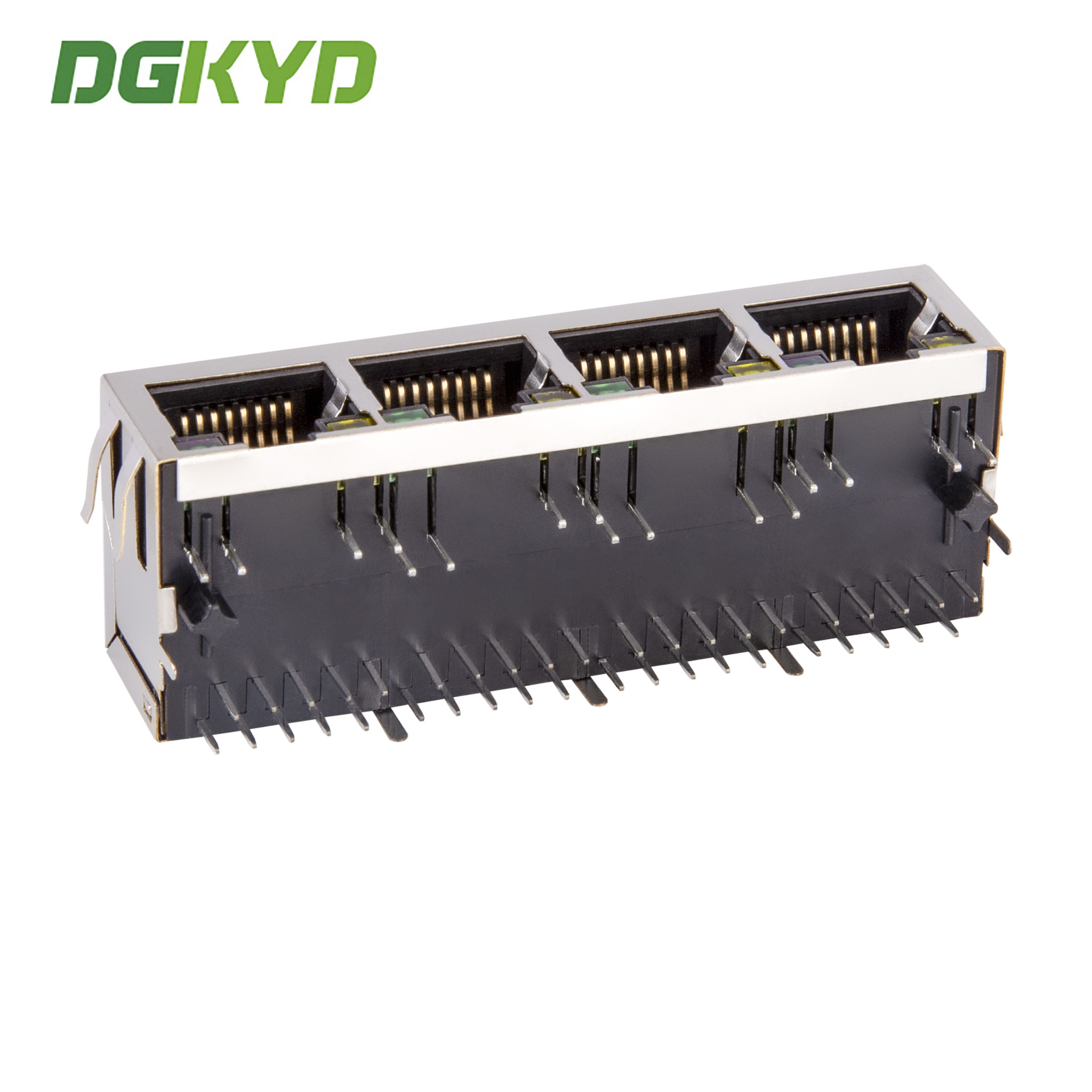

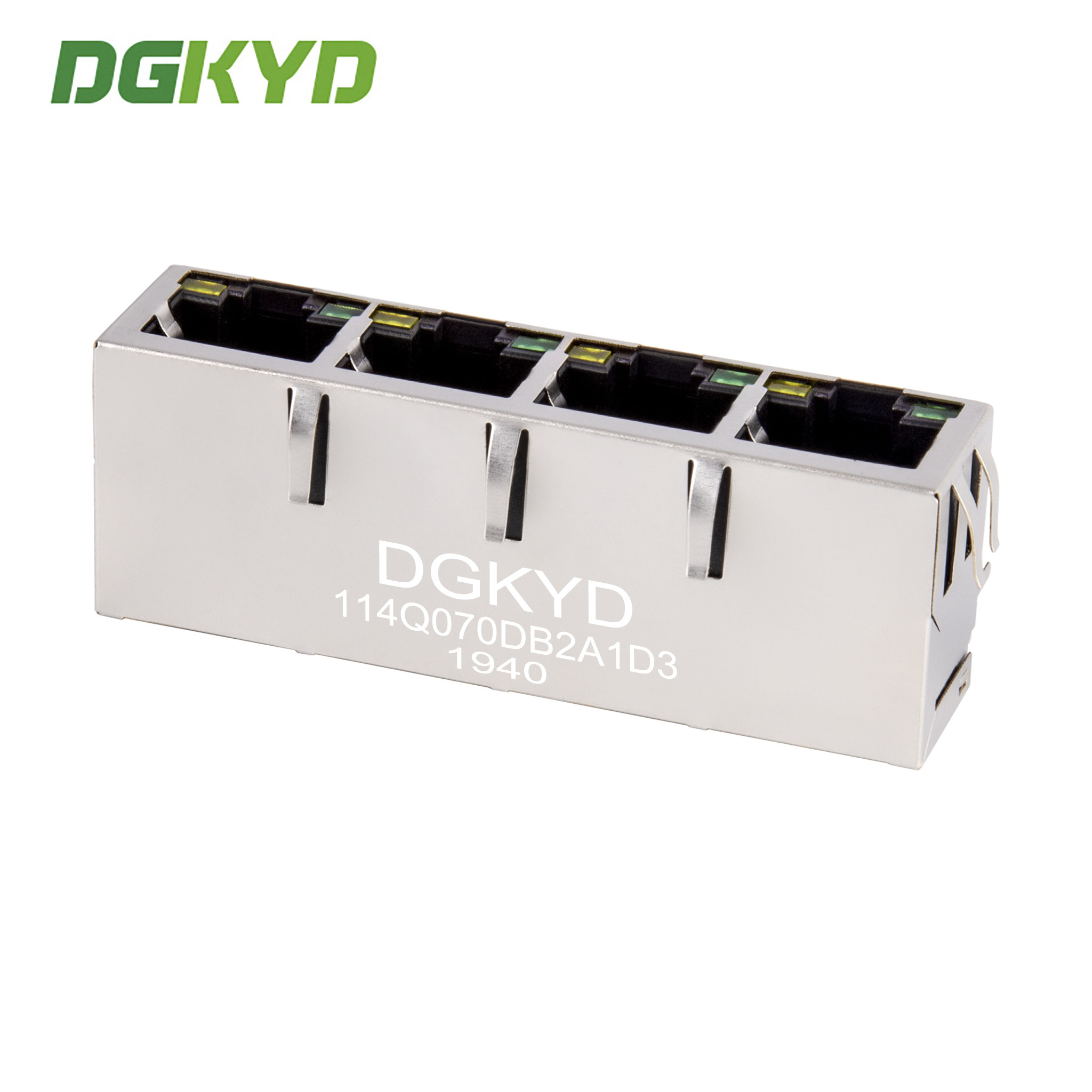

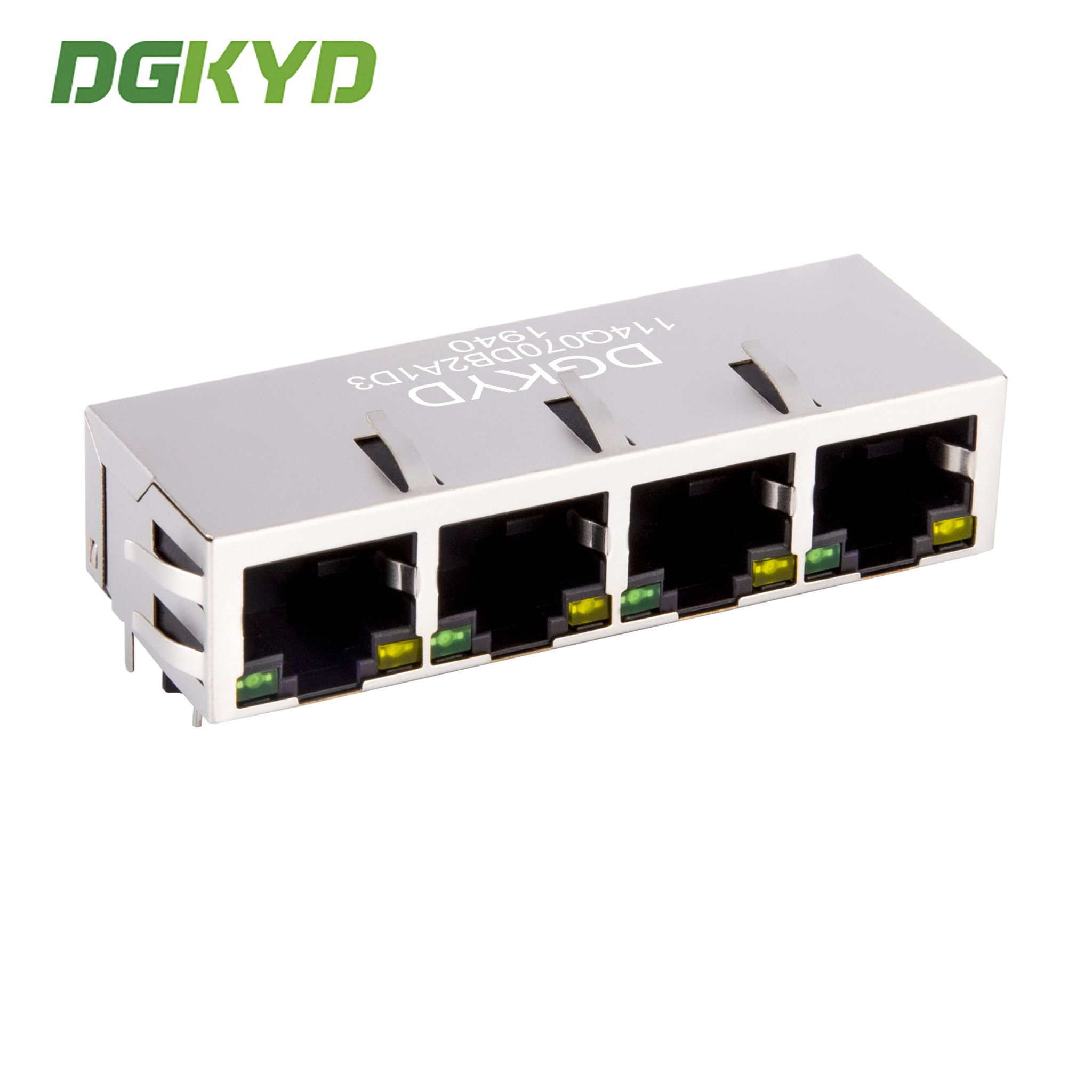

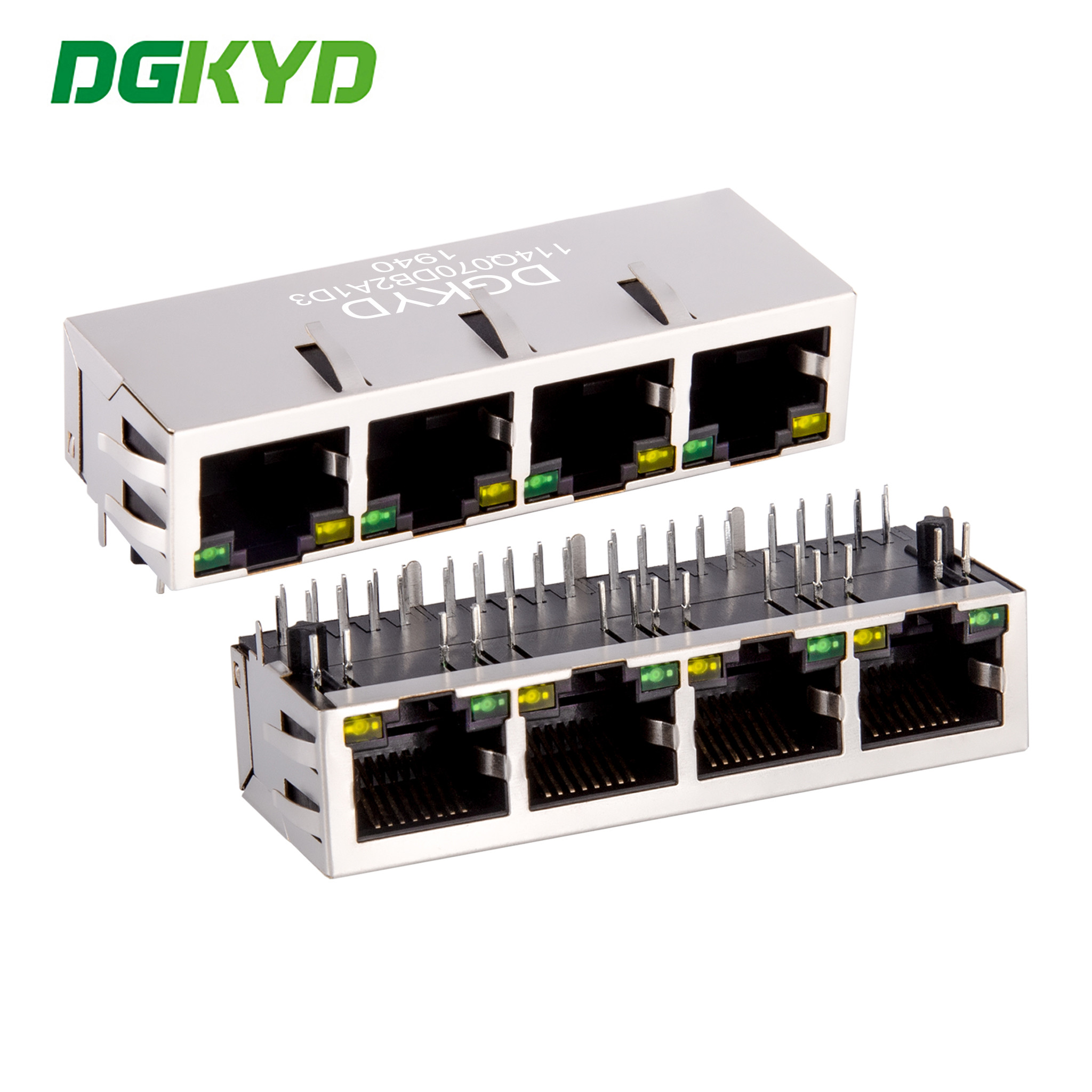

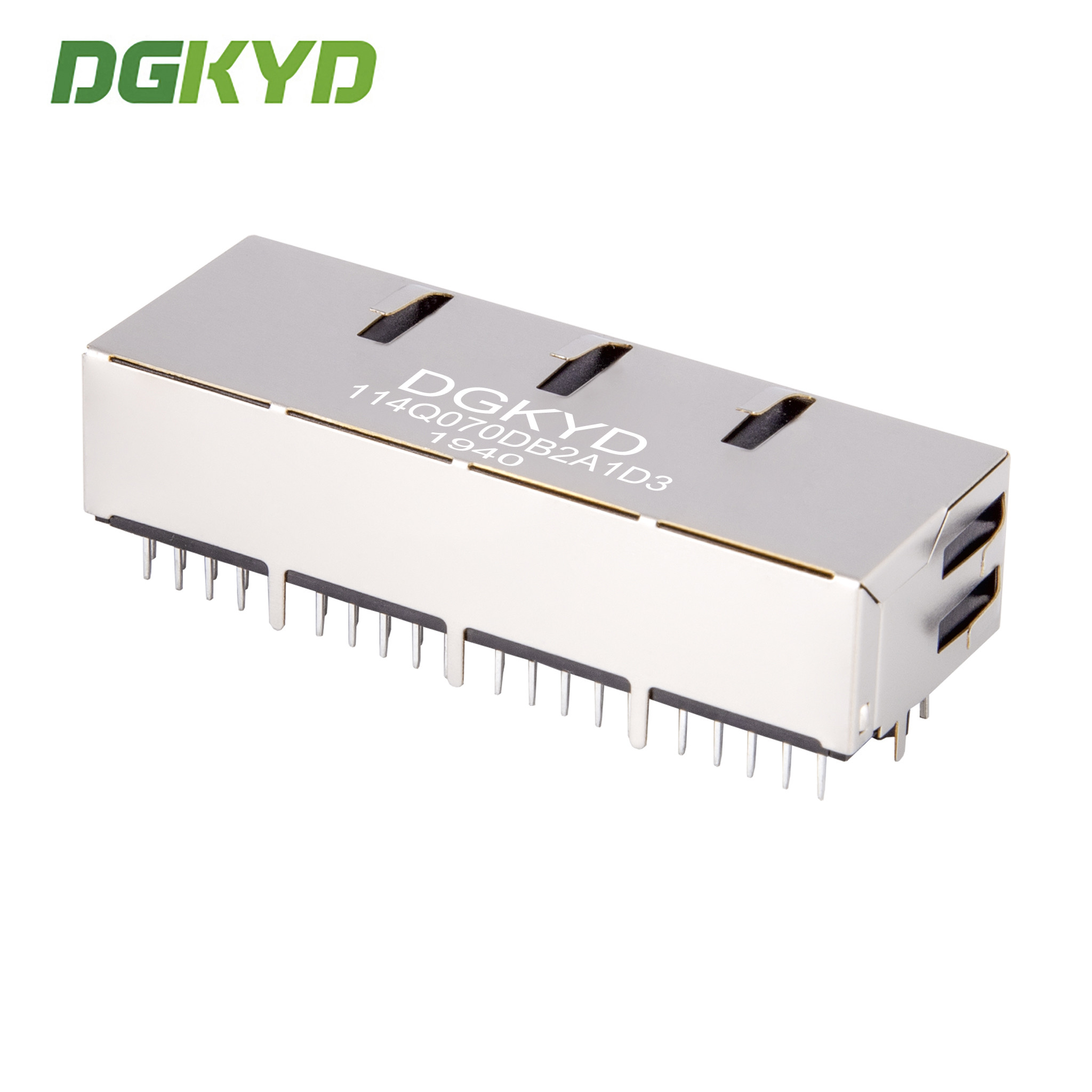

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3

Quantité de commande min :	1 pièce	Prix :	Please contact us to get the latest price.
Détails d'emballage :	Plateau dans le carton	Délai de livraison :	10 jours
Conditions de paiement :	T/T, D/P, D/A, L/C, Western Union, MoneyGram	Capacité d'approvisionnement :	100 000 pièces par jour

Lieu d'origine:	DongGuan de Chine	Nom de marque:	DGKYD
Certification:	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001	Numéro de modèle:	Le nombre de points de contrôle est déterminé par la méthode suivante:

Détail Infomation
Le bouclier RJ45:	- Oui, oui.	Numéro.Port:	4 port
Nom du produit:	RJ45 avec transformateur	Le type:	RJ45 Femme
Logements:	Phénolique, PBT noir (UL94V-0)	Noyau en plastique:	Remplisseur en fibre de verre PBT Noir ((UL94V-0), ROHS
Température de stockage:	-40°C à +85°C	Nombre de points:	8P10C
température de fonctionnement:	-40 °C à +85 °C	LED:	Vert/jaune
Mettre en évidence:	RJ45 network connector With Transformer , quad port RJ45 network connector , RJ45 quad port network connector

Description de produit

Product Specification Document

DGKYD114Q070DB2A1D3.pdf

Part Number	DGKYD114Q070DB2A1D3	Brand	DGKYD/OEM/ODM
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	TAB-DOWN
Filter	With Filter	LED Option	With LED
LED Color	Green/Yellow	Panel Stops	With Panel Stops
Shielded	With metal shield	Applies To	Printedout Circuit Board
Port Configuration	1X4 Ports	Number of Positions	10
Jack Configuration	1X4	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating	Gold 6u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black
Housing Material Temperature	Standard	UL Flammability Rating	UL 94V-0

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3 0

RJ45 quad port RJ45 network port integrated gigabit transformer network connector With Transformer For Ethernet Switc DGKYD114Q070DB2A1D3 1

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.
